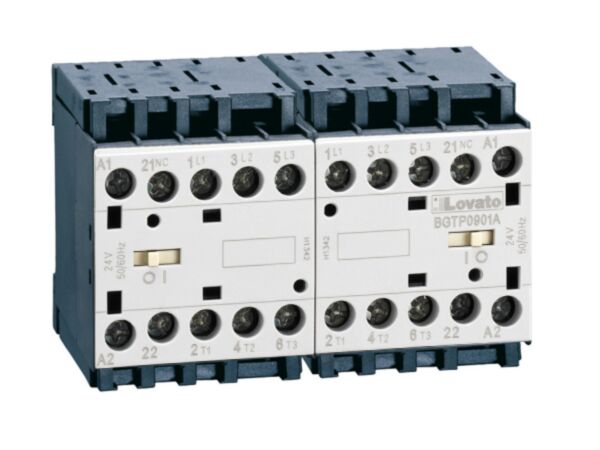

11BGTP0901A400 - REVERSING CONTACTOR 9A AC3 REAR PIN
MPN: 11BGTP0901A400
Alt. SKU: BGTP0901A400
Special Price
£149.87
£124.89
Regular Price
£249.78
Why Choose the 11BGTP0901A400?
Lovato’s BGTP09 reversing contactor assembly, SKU 11BGTP0901A400, delivers dependable forward/reverse motor control with a 400VAC 50/60Hz AC coil. This open frame unit integrates a built-in interlock, operable only via rear PCB solder pins, and is rated 9A AC-3 (AC) with 4kW motor power. UL/CSA 5 HP at 480V and IEC/EN 60947 compliance support panel builders and OEMs.
Designed for efficient assembly, the BGTP09 features rear PCB solder pin connectivity to streamline wiring and interlocking. Weighing 400 g, it meets IEC/EN 60947-1, IEC/EN 60947-4-1 and UL508 CSA C22.2 n° 14 requirements, with a Sustainability certification noted by the manufacturer. Choose this compact reversing contactor assembly for reliable performance and consistent standards alignment in control panels.
Key Benefits
- 400VAC 50/60Hz AC coil for reliable actuation
- Built-in interlock via rear PCB solder pins
- 9A AC-3, 4kW rating suits compact motor reversing
- UL/CSA 5 HP at 480V for global panel standards
- Open frame design simplifies enclosure integration
- Conforms to IEC/EN 60947-1 and 60947-4-1
- Lightweight 400 g for ease of handling
Technical Specification
- Product type designation: BGTP09
- Weight: 400 g
What’s Included
- Lovato BGTP09 reversing contactor assembly (SKU 11BGTP0901A400)
- Built-in interlock with rear PCB solder pins
- Pre-fitted 400VAC 50/60Hz AC coil
- Basic installation and safety information
Applications
- Forward/reverse control of AC motors up to 4kW
- Control panels requiring IEC/EN 60947-4-1 compliant reversing gear
- UL/CSA 480V installations up to 5 HP
- OEM equipment using rear PCB solder pin connectivity
Frequently Asked Questions
What coil voltage does this reversing contactor assembly use?
It uses a 400VAC 50/60Hz AC coil.
Is the coil AC or DC?
It is an AC coil.
What are the AC-3 current and power ratings?
It is rated 9A AC-3 in AC with 4kW motor power.
Does it include an interlock?
Yes, it has a built-in interlock only with rear PCB solder pins.
Which standards does it conform to?
IEC/EN 60947-1, IEC/EN 60947-4-1, and UL508 CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate power before work and follow applicable IEC/UL standards and the manufacturer’s instructions.
| Manufacturer Part Number | 11BGTP0901A400 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975145555 |
| Alternative Product SKU | BGTP0901A400 |
