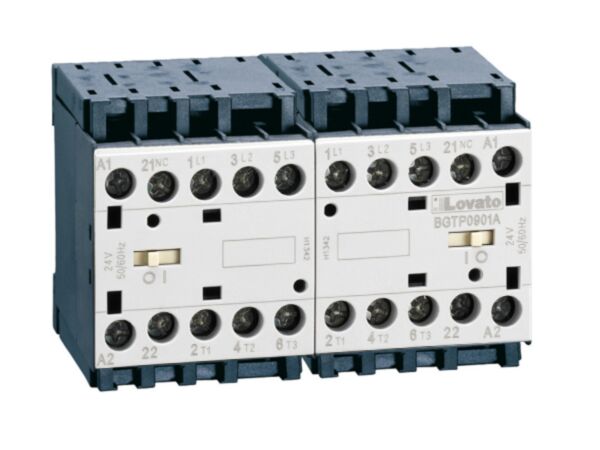

11BGTP0901A230 - REVERSING CONTACTOR 9A AC3 REAR PIN
MPN: 11BGTP0901A230
Alt. SKU: BGTP0901A230
Special Price
£149.87
£124.89
Regular Price
£249.78
Why Choose the 11BGTP0901A230?
Engineered by Lovato, the 11BGTP0901A230 is a reversing contactor assembly designed for reliable motor direction control. It features an AC coil rated 230VAC 50/60Hz and a built‑in interlock available only with rear PCB solder pins. With AC‑3 9A and 4kW ratings, plus 5HP at 480V (UL/CSA), this open‑frame unit delivers compact, dependable performance for panel builders and OEMs.
Conforming to IEC/EN 60947-1, IEC/EN 60947-4-1 and UL508 CSA C22.2 n° 14, this BGTP09 designation assembly supports compliance-driven installations. Its open frame with rear PCB solder pin interface simplifies integration, while the 400 g build suits space‑conscious control panels. Ideal for reversing contactor assemblies in industrial automation, the unit lists Sustainability among its certifications and offers trusted Lovato quality for repeatable, safe operation.
Key Benefits
- 230VAC 50/60Hz AC coil for consistent actuation across mains frequencies.
- Built‑in interlock; rear PCB solder pins ensure dependable reversing logic.
- AC‑3 9A, 4kW rating suits compact motor reversing duties.
- UL/CSA 5HP at 480V supports North American applications.
- Open‑frame design simplifies panel integration and wiring access.
- Conforms to IEC/EN 60947-1 and 60947-4-1, plus UL508.
- Lightweight 400 g assembly with BGTP09 designation for easy identification.
Technical Specification
- Product type designation: BGTP09
- Weight: 400 g
What’s Included
- Lovato reversing contactor assembly, open frame (BGTP09)
- Built‑in interlock mechanism
- Rear PCB solder pin interface
- Manufacturer datasheet (downloadable)
Applications
- Motor direction reversal in industrial control panels
- OEM equipment requiring compact reversing contactor assemblies
- Machinery where AC‑3 9A, 4kW ratings are appropriate
- Installations requiring UL/CSA 5HP at 480V compliance
- Systems interfacing via rear PCB solder pins
Frequently Asked Questions
What coil voltage and frequency does the 11BGTP0901A230 use?
It has an AC coil rated 230VAC 50/60Hz.
What are the AC‑3 current and power ratings?
The assembly is rated AC‑3 9A with a 4kW power rating.
Does it include an interlock mechanism?
Yes—there is a built‑in interlock, available only with rear PCB solder pins.
Which standards does it conform to?
IEC/EN 60947‑1, IEC/EN 60947‑4‑1 and UL508 CSA C22.2 n° 14.
What is the UL/CSA horsepower rating at 480V?
It is rated 5 HP at 480V under UL/CSA.
Safety note: Installation must be performed by qualified personnel. Isolate all power before work, follow IEC/EN 60947 and UL/CSA requirements, and ensure rear PCB solder pin interlock connections are secure.
| Manufacturer Part Number | 11BGTP0901A230 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975145517 |
| Alternative Product SKU | BGTP0901A230 |
