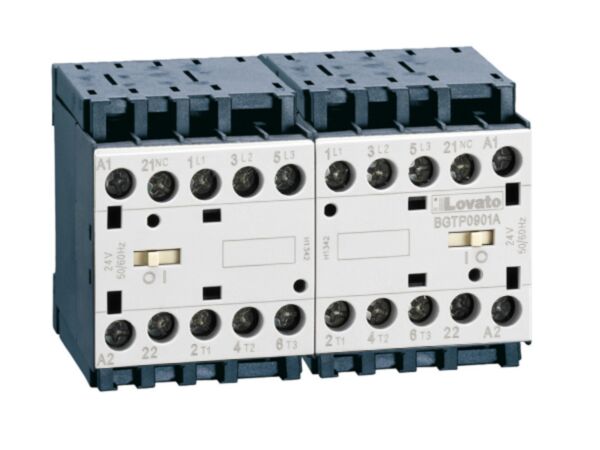

11BGTP0901A048 - REVERSING CONTACTOR 9A AC3 REAR PIN

Why Choose the Lovato 11BGTP0901A048 Reversing Contactor Assembly?

The Lovato 11BGTP0901A048, also known as the BGTP0901A048, is a compact and reliable reversing contactor assembly designed for industrial motor control, automation and machine building applications. As part of the Lovato BGTP reversing contactor assembly range, it provides forward and reverse motor switching in a compact open-frame format with rear PCB solder pin connections.

This reversing contactor assembly is designed with a built-in mechanical interlock, helping prevent simultaneous operation of the forward and reverse contactors. Its rear PCB solder pin format makes it suitable for control systems and compact assemblies where direct printed circuit board integration is required.

With a rated operational current of 9 A AC-3, a motor power rating of 4 kW and a 48 V AC coil, the 11BGTP0901A048 is suitable for reversing three-phase motor control circuits in industrial environments. Its compact design supports efficient installation in machinery control systems, automation panels and OEM equipment.

Key Advantages

• Compact reversing contactor assembly for forward and reverse motor control.
• 9 A AC-3 operational current rating for industrial motor switching.
• 4 kW motor power rating for machinery and automation applications.
• 48 V AC coil operating at 50 / 60 Hz.
• Built-in mechanical interlock helps prevent simultaneous forward and reverse contactor operation.
• Rear PCB solder pins support compact printed circuit board integration.

Key Features

• Lovato BGTP reversing contactor assembly series.
• Open-frame reversing contactor assembly.
• 9 A AC-3 rated operational current.
• 4 kW rated motor power.
• 48 V AC contactor coil voltage.
• Built-in interlock for reliable reversing control.
• Rear PCB solder pin connection format.
• Suitable for industrial motor reversing and automation control circuits.

Technical Specifications

• Manufacturer: Lovato Electric
• Series: BGTP Reversing Contactor Assemblies
• Model: BGTP0901A048
• Order code: 11BGTP0901A048
• Product type: Reversing contactor assembly
• Assembly type: Open frame, built-in interlock only with rear PCB solder pins
• Number of poles: 3
• Main contact configuration: 3NO
• Auxiliary contacts: 1NC
• Rated operational current AC-3: 9 A
• Rated motor power: 4 kW
• UL / CSA horsepower rating at 480 V: 5 HP
• Coil type: AC coil
• Contactor coil voltage: 48 V AC
• Coil frequency: 50 / 60 Hz
• Connection type: Rear PCB solder pins
• Mounting type: PCB / panel assembly integration
• Package dimensions (H × W × D): approx. 97 × 65 × 90 mm
• Weight: approx. 0.388 kg
• EAN: 8013975145449
• HS code: 85365080

Reliable Reversing Motor Control for Industrial Machinery

Reversing contactor assemblies such as the Lovato 11BGTP0901A048 are used to control the direction of three-phase motors by switching the phase sequence through forward and reverse contactors. This allows machinery to move, rotate or travel in both directions under controlled electrical operation.

The built-in interlock helps ensure that the forward and reverse contactors cannot be energised at the same time, supporting safer and more reliable motor control. The rear PCB solder pin configuration makes the BGTP0901A048 particularly suitable for compact control systems and OEM assemblies where PCB-based integration is required.

Typical Applications

• Forward and reverse motor control systems.
• PCB-integrated motor starter assemblies.
• Conveyor and material handling equipment.
• Hoists, lifts and positioning machinery.
• Industrial automation control panels.
• Packaging and production machinery.
• Machine building and OEM equipment.

Trusted by Machine Builders Worldwide

Lovato reversing contactor assemblies are used by panel builders, automation engineers and OEM machine manufacturers to provide reliable forward and reverse motor control in industrial equipment and compact control systems.
