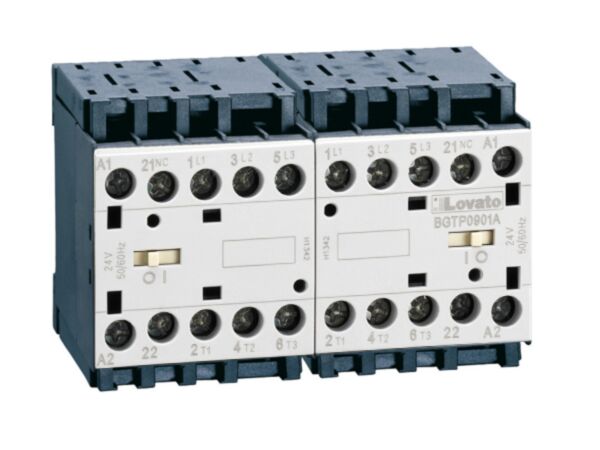

11BGTP0901A024 - REVERSING CONTACTOR 9A AC3 REAR PIN

Why Choose the Lovato 11BGTP0901A024 Reversing Contactor Assembly?

The Lovato 11BGTP0901A024 is a compact and reliable reversing contactor assembly designed for forward and reverse motor control in industrial machinery, automation systems and electrical control panels. As part of the Lovato BGTP09 / 11BG range, it provides a practical reversing solution for applications where dependable switching, compact installation and PCB-based integration are required.

This open-frame assembly combines two contactors with a built-in mechanical interlock and rear PCB solder pins. The interlocked arrangement helps prevent simultaneous operation of the forward and reverse contactors, supporting safer direction control for three-phase AC motors in industrial environments.

With a rated operational current of 9 A AC-3, a motor power rating of 4 kW and a 24 V AC 50/60 Hz coil, the Lovato 11BGTP0901A024 is well suited to compact machinery, motor starter assemblies, OEM control equipment and applications where a reversing contactor assembly is required with rear PCB solder pin connections.

Key Advantages

• Complete reversing contactor assembly for forward and reverse motor control.
• 9 A AC-3 operational rating for industrial motor switching duties.
• 4 kW motor power rating for compact three-phase motor applications.
• 24 V AC 50/60 Hz coil for low-voltage AC control circuits.
• Open-frame construction with built-in mechanical interlock.
• Rear PCB solder pins for integration into printed circuit board based assemblies.

Key Features

• Lovato BGTP09 / 11BG reversing contactor assembly.
• 3-pole reversing configuration for AC motor direction control.
• 9 A AC-3 rated operational current.
• 4 kW rated motor power at 400 V AC-3.
• 24 V AC contactor coil at 50/60 Hz.
• Built-in mechanical interlock for safer reversing control.
• Rear PCB solder pins for OEM and panel assembly integration.
• Compact open-frame format for control cabinets and starter modules.

Technical Specifications

• Manufacturer: Lovato Electric
• Series: BGTP09 / 11BG
• Model: 11BGTP0901A024
• Alternative code: BGTP0901A024
• Product type: Reversing contactor assembly
• Configuration: 3-pole reversing contactor assembly
• Rated operational current: 9 A AC-3
• Rated motor power at 400 V AC-3: 4 kW
• Coil voltage: 24 V AC
• Coil frequency: 50 / 60 Hz
• Type of coil: AC coil
• Main contact configuration: 3 normally open main contacts
• Auxiliary contact arrangement: 1 NC auxiliary contact
• Rated insulation voltage: 690 V
• UL / CSA horsepower rating at 480 V: 5 HP
• Construction: Open frame with built-in interlock only and rear PCB solder pins
• Mounting type: PCB / panel assembly integration
• Terminal type: Rear PCB solder pins / clamp screw terminals
• Operating temperature: -40 to +60 °C
• Approximate width: 88 mm
• Approximate height: 58 mm
• Approximate depth: 56 mm
• Package dimensions: 97 x 65 x 90 mm
• Package volume: 567.45 cm³
• Weight: approx. 400 g
• EAN: 8013975145425
• HS code: 85365080
• Certifications: cULus
• Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, UL508, CSA C22.2 No. 14

Reliable Reversing Control for Industrial Machinery

Reversing contactor assemblies are used to change the direction of rotation of three-phase motors by reversing the phase sequence supplied to the motor. This makes them essential for applications where controlled forward and reverse movement is required, including conveyors, handling systems, automated doors, hoists and compact production machinery.

The Lovato 11BGTP0901A024 is particularly suited to OEM starter assemblies and control systems where PCB-based connections are required. Its built-in interlock, compact construction and industrial contactor design help support dependable motor control while allowing efficient integration into custom electrical assemblies.

Typical Applications

• Forward and reverse control of three-phase AC motors.
• OEM motor starter assemblies with PCB integration.
• Compact machinery and automated control equipment.
• Industrial conveyors and material handling systems.
• Packaging, processing and production machinery.
• Control panels requiring 24 V AC reversing contactor assemblies.

Trusted by Panel Builders Worldwide

Lovato reversing contactor assemblies are widely used by control panel builders, automation engineers and OEM machine manufacturers for dependable motor direction control in compact industrial systems.
