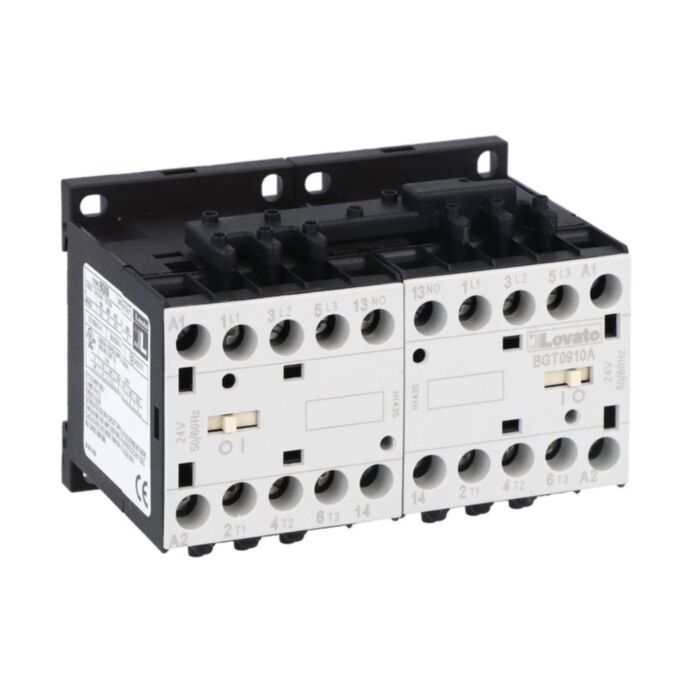

11BGT0910A400 - REVERSING CONTACTOR BGT09 400V 50-60HZ
MPN: 11BGT0910A400
Alt. SKU: BGT0910A400
Special Price
£145.81
£121.51
Regular Price
£243.02
Why Choose the 11BGT0910A400?
Engineered for dependable motor direction control, the Lovato BGT09 reversing contactor assembly (SKU 11BGT0910A400) combines an AC coil with a built-in interlock for power wiring only. Rated 9A AC-3 and 4 kW, this open-frame unit integrates easily into control panels. With a 400VAC 50/60Hz coil and a UL/CSA 5 HP at 480 V reference, it delivers consistent performance for industrial reversing applications.
Conforming to IEC/EN 60947-1 and IEC/EN 60947-4-1, and UL508 CSA C22.2 n° 14, this open-frame assembly carries the BGT09 designation and weighs just 380 g. The AC coil design simplifies selection where 400VAC 50/60Hz is available, and the sustainability certification supports responsible specification. Built to Lovato quality, it provides a practical, space-saving choice for reliable reversing contactor assemblies in OEM builds and maintenance upgrades.
Key Benefits
- Built-in interlock for power wiring only enhances reversing reliability.
- AC coil rated 400VAC 50/60Hz for broad supply compatibility.
- 9A AC-3, 4 kW rating supports compact motor loads.
- Open-frame format simplifies cooling and panel integration.
- IEC/EN 60947-1 and 60947-4-1 compliance assures proven performance.
- UL/CSA 5 HP at 480 V aids cross-border specification.
- Lightweight 380 g assembly eases handling during installation.
Technical Specification
- Product type designation: BGT09
- Weight: 380 g
What’s Included
- Lovato reversing contactor assembly, open frame (BGT09 designation)
- Built-in interlock for power wiring only
- AC coil pre-fitted, 400VAC 50/60Hz
- Product datasheet or user leaflet
Applications
- Motor reversing duties up to 4 kW (AC-3, 9A)
- Directional control on conveyors and material handling equipment
- Pumps, fans and machinery requiring forward/reverse operation
- OEM control panels needing compact open-frame reversing solutions
- Maintenance replacements matching 400VAC 50/60Hz coil supplies
Frequently Asked Questions
What coil voltage and frequency does this assembly use?
The contactor coil is 400VAC 50/60HZ.
Does it include an interlock between contactors?
Yes, it has a built-in interlock with power wiring only.
What is the AC-3 utilisation category rating?
It is rated 9A AC-3 in AC, with 4 kW motor power.
Which standards does this product conform to?
IEC/EN 60947-1, IEC/EN 60947-4-1, and UL508 CSA C22.2 n° 14.
What is the UL/CSA horsepower rating at 480 V?
It is rated 5 HP at 480 V per UL/CSA.
Safety note: Install and commission only by qualified personnel. Always isolate and verify absence of voltage before wiring, and follow the manufacturer’s instructions and applicable IEC/EN standards.
| Manufacturer Part Number | 11BGT0910A400 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975095256 |
| Alternative Product SKU | BGT0910A400 |
| Coil Voltage | 400V |
