11BGT0910A048 - REVERSING CONTACTOR BGT09 48V 50-60HZ
MPN: 11BGT0910A048
Alt. SKU: BGT0910A048
Special Price
£145.81
£121.51
Regular Price
£243.02
Why Choose the 11BGT0910A048?

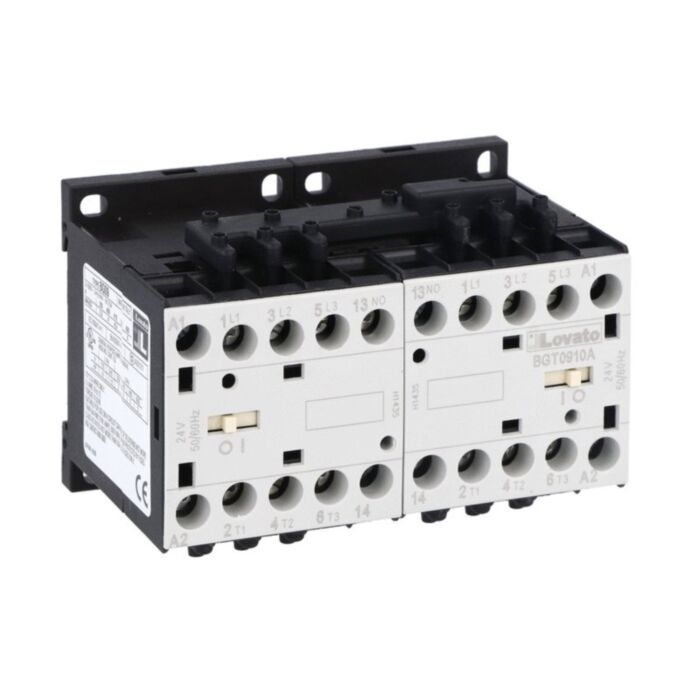

Lovato’s BGT09 reversing contactor assembly delivers dependable motor direction control in a compact, open-frame build. SKU 11BGT0910A048 features a 48VAC 50/60Hz AC coil and a built-in interlock with power wiring only for straightforward forward/reverse integration. Rated 9A AC-3 (4kW), it suits small motor loads while supporting UL/CSA 5 HP at 480V, helping panel builders meet common industrial requirements.
Designed to meet IEC/EN 60947-1 and 60947-4-1 plus UL508 CSA C22.2 n° 14, this Lovato assembly offers reliable compliance across markets. Weighing 380 g, the open frame facilitates straightforward installation within control panels. Its clear product designation BGT09 and manufacturer sustainability certification support specification clarity for OEMs and maintenance teams seeking robust reversing contactor assemblies.
Key Benefits
- Built-in interlock with power wiring only simplifies reversing schemes.
- 48VAC 50/60Hz AC coil suits common control systems.
- Rated 9A AC-3, 4kW for dependable small motor control.
- UL/CSA horsepower rating 5 HP at 480V for wider compliance.
- Conforms to IEC/EN 60947-1 and 60947-4-1 standards.
- Compact 380 g open-frame design aids panel space efficiency.
- Lovato BGT09 designation ensures clear identification in documentation.
Technical Specification
- Product type designation: BGT09
- Weight: 380 g
What’s Included
- Lovato reversing contactor assembly, open frame, with built-in interlock
- Pre-fitted 48VAC 50/60Hz AC coil
- Manufacturer datasheet (downloadable)
Applications
- Forward and reverse control of motors up to 4kW (AC-3)
- Industrial control panels using 48VAC coil control at 50/60Hz
- OEM machinery requiring reversing contactor assemblies with interlock
- Projects aligned to IEC/EN 60947 and UL508 CSA C22.2 n° 14
Frequently Asked Questions
What coil voltage and frequency does this assembly use?
It has an AC coil rated 48VAC 50/60Hz.
What is the AC-3 utilisation category rating?
It is rated 9A in AC, equivalent to 4kW.
Does it include an interlock for reversing?
Yes—there is a built-in interlock with power wiring only in an open-frame configuration.
Which standards does it conform to?
IEC/EN 60947-1, IEC/EN 60947-4-1, and UL508 CSA C22.2 n° 14.
What is the UL/CSA horsepower rating at 480V?
The UL/CSA rating is 5 HP at 480V.
Safety note: Installation and commissioning must be performed by qualified personnel. Isolate all power sources and follow the manufacturer’s instructions and applicable standards during wiring and operation.
| Manufacturer Part Number | 11BGT0910A048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975095157 |
| Alternative Product SKU | BGT0910A048 |
| Coil Voltage | 48V |
