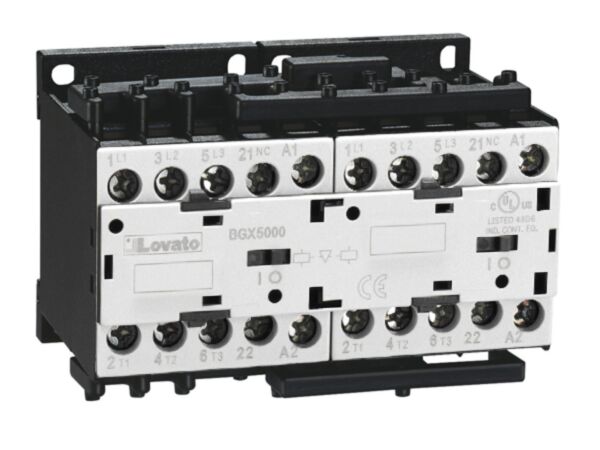

11BGR1201D024 - REVERSING CONTACTOR BGR12.01D 24V
MPN: 11BGR1201D024
Alt. SKU: BGR1201D024
Special Price
£202.81
£169.01
Regular Price
£338.03
Why Choose the 11BGR1201D024?
The Lovato 11BGR1201D024 is a reversing contactor assembly designed for dependable motor direction control in industrial panels. Featuring a 24VDC DC coil and open frame construction, it incorporates an external interlock with power and auxiliary wiring for safe direction changeover. Rated 12A AC‑3 in DC with 5.7kW capability, it delivers robust performance in compact assemblies.
With a UL/CSA 7.5HP rating at 480V and compliance to IEC/EN 60947-1 and 60947-4-1 plus UL508 CSA C22.2 n° 14, the BGR12 designation confirms proven quality. Weighing just 460 g, this assembly streamlines installation while meeting sustainability certification requirements. Choose it when you need a ready-to-integrate, externally interlocked solution for forward/reverse applications using a 24VDC coil.
Key Benefits
- 24VDC DC coil for straightforward control integration.
- External interlock enhances safe reversing operations.
- Open frame design for flexible panel integration.
- Power and auxiliary wiring included to simplify connections.
- Rated 12A AC3 in DC with 5.7kW capability.
- UL/CSA 7.5HP at 480V for assured performance.
- Complies with IEC/EN 60947 and UL508 CSA C22.2.
Technical Specification
- Product type designation: BGR12
- Weight: 460 g
What’s Included
- Reversing contactor assembly (open frame)
- External interlock with power and auxiliary wiring
- Basic installation information
Applications
- Forward/reverse motor control in industrial panels
- Machinery requiring direction changeover with DC-coil control
- Conveyor, pump or hoist systems requiring reversing functionality
- Automation systems using 24VDC control circuits
Frequently Asked Questions
What coil voltage does the 11BGR1201D024 use?
It uses a 24VDC DC coil.
Is this an open frame unit with an external interlock?
Yes, the type is open frame with external interlock and power and auxiliary wiring.
What are its current and power ratings?
It is rated 12A AC3 in DC with a 5.7kW power rating.
Which standards does it comply with?
It complies with IEC/EN 60947-1, IEC/EN 60947-4-1, and UL508 CSA C22.2 n° 14.
What is the horsepower rating at 480V?
The UL/CSA horsepower rating at 480V is 7.5 HP.
Safety note: Install and commission only by qualified personnel. Isolate all power before wiring, verify the 24VDC coil voltage, and follow IEC/EN 60947 and local regulations to ensure correct interlocking and safe operation.
| Manufacturer Part Number | 11BGR1201D024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975083680 |
| Alternative Product SKU | BGR1201D024 |
| Coil Voltage | 24V |
