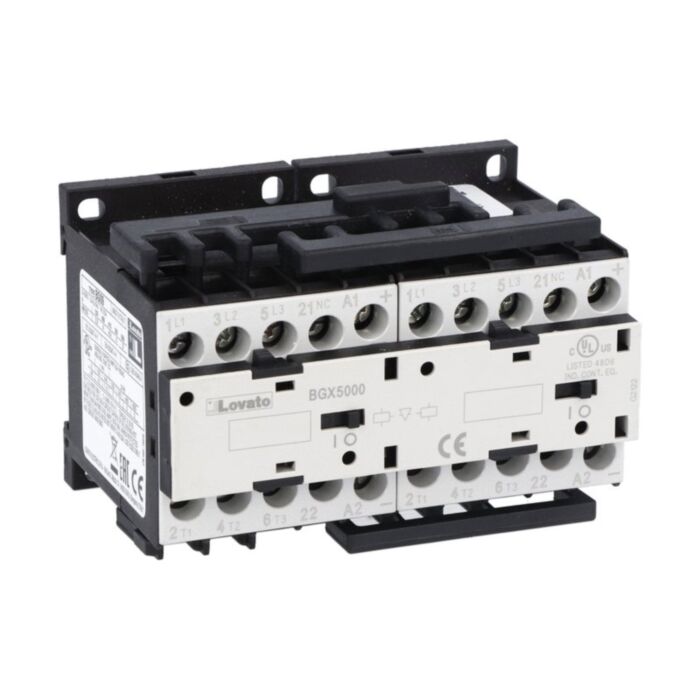

11BGR0901D125 - REVERSING CONTACTOR BGR09.01D 125V
MPN: 11BGR0901D125
Alt. SKU: BGR0901D125
Special Price
£193.76
£161.47
Regular Price
£322.93
Why Choose the 11BGR0901D125?
Lovato’s 11BGR0901D125 is a robust reversing contactor assembly designed for dependable motor direction control. It features a DC coil rated at 125VDC, an open frame construction, and an external interlock with prewired power and auxiliary wiring to simplify installation. With a 9A AC‑3 in DC rating and 4kW capability, it delivers reliable switching performance in compact panels and machine control applications.
Part of the BGR09 family, this assembly aligns with IEC/EN 60947-1 and IEC/EN 60947-4-1 standards and carries UL508 CSA C22.2 n° 14 conformity, supporting compliance in global build specifications. It also offers an UL/CSA horsepower rating of 5 HP at 480V, and weighs just 460 g, aiding easy handling during panel integration. Ideal for OEMs and panel builders using a 125VDC control supply.
Key Benefits
- 125VDC DC coil for consistent control in DC-supplied panels.
- External interlock supports reliable reversing functionality.
- Prewired power and auxiliary wiring speeds installation and reduces errors.
- 9A AC-3 in DC, 4kW rating suits compact motor control tasks.
- Open frame design integrates easily into control panels and enclosures.
- Certified to IEC/EN 60947 and UL508 CSA standards for compliance.
- UL/CSA 5 HP at 480V supports common motor applications.
Technical Specification
- Product type designation: BGR09
- Weight: 460 g
What’s Included
- Lovato BGR09 reversing contactor assembly (SKU 11BGR0901D125)
- External interlock mechanism
- Prewired power and auxiliary connections
- Basic installation and safety instructions
Applications
- Motor reversing control with 125VDC control circuits
- OEM machinery and control cabinet integration
- Industrial automation panels requiring compact reversing assemblies
- General-purpose motor direction switching within stated ratings
Frequently Asked Questions
What is the coil voltage?
The contactor assembly uses a 125VDC DC coil.
Does it include an interlock and wiring?
Yes, it includes an external interlock with prewired power and auxiliary wiring.
What are the current and power ratings?
It is rated 9A AC-3 in DC with a 4kW power rating.
Which standards does it conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-4-1, and UL508 CSA C22.2 n° 14.
What is the UL/CSA horsepower rating at 480V?
It is rated 5 HP at 480V under UL/CSA.
Safety note: Only qualified personnel should install and commission this product. Always isolate power, verify the 125VDC coil supply, and follow applicable standards and the manufacturer’s instructions.
| Manufacturer Part Number | 11BGR0901D125 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975083666 |
| Alternative Product SKU | BGR0901D125 |
| Coil Voltage | 125V |
