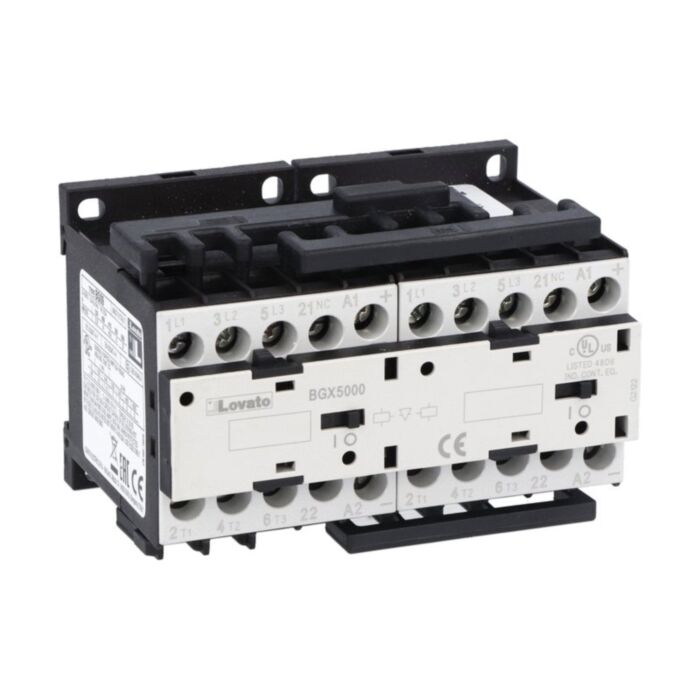

11BGR0901D024 - REVERSING CONTACTOR BGR09.01D 24V
MPN: 11BGR0901D024
Alt. SKU: BGR0901D024
Special Price
£193.76
£161.47
Regular Price
£322.93
Why Choose the 11BGR0901D024?
Lovato’s BGR09 reversing contactor assembly (SKU 11BGR0901D024) delivers dependable motor direction control in a compact, open-frame build. Featuring a 24VDC DC coil and an external interlock with power and auxiliary wiring, it simplifies integration and helps prevent cross-conduction. Rated 9A AC-3 with 4 kW motor capacity and 5 HP at 480 V (UL/CSA), it’s engineered for robust, repeatable switching.
Conforming to IEC/EN 60947-1, IEC/EN 60947-4-1 and UL508 CSA C22.2 n° 14, this reversing contactor assembly supports compliant, space-efficient panel builds. Weighing just 460 g, it’s easy to handle during installation while maintaining Lovato reliability. Ideal for conveyors, pumps, fans and OEM control panels requiring forward/reverse operation on 24VDC control circuits, it offers assured performance in demanding industrial automation tasks.
Key Benefits
- 24VDC DC coil enables reliable low-voltage control in industrial panels.
- External interlock with power and auxiliary wiring enhances safety and coordination.
- 9A AC-3 rating and 4 kW capacity suit many small motor applications.
- UL/CSA 5 HP at 480 V supports compliance in international projects.
- Open frame design simplifies mounting and heat dissipation.
- Conformity to IEC/EN 60947 and UL508 assures standards compliance.
- Lightweight 460 g assembly aids quick, low-effort installation.
Technical Specification
- Product type designation: BGR09
- Weight: 460 g
What’s Included
- Lovato BGR09 reversing contactor assembly, open frame
- External interlock with power and auxiliary wiring preconfigured
- 24VDC DC coil fitted to the assembly
- Basic installation and safety information
Applications
- Motor reversing for machinery up to 4 kW
- Conveyor and material handling direction control
- Pumps and fans requiring forward/reverse operation
- OEM control panels with 24VDC control circuits
- General industrial automation where compact reversing is needed
Frequently Asked Questions
What is the coil voltage on this assembly?
The contactor assembly uses a 24VDC DC coil for control circuits.
Which standards does this product conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-4-1 and UL508 CSA C22.2 n° 14.
What are its current and power ratings?
It is rated 9A AC-3 with 4 kW motor capacity; UL/CSA horsepower is 5 HP at 480 V.
Is it open frame and does it include interlocking and wiring?
Yes, it is an open-frame unit with an external interlock and power and auxiliary wiring.
What is the product designation and weight?
The product type designation is BGR09 and the assembly weighs 460 g.
Safety note: Install and commission only by qualified electricians. Always isolate power, follow applicable standards, and observe manufacturer instructions before wiring or operation.
| Manufacturer Part Number | 11BGR0901D024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975083628 |
| Alternative Product SKU | BGR0901D024 |
| Coil Voltage | 24V |
