11BGP0910D110 - MINICONTACTOR 3P+1NC 9A AC3 DC REAR PIN

Why Choose the 11BGP0910D110?

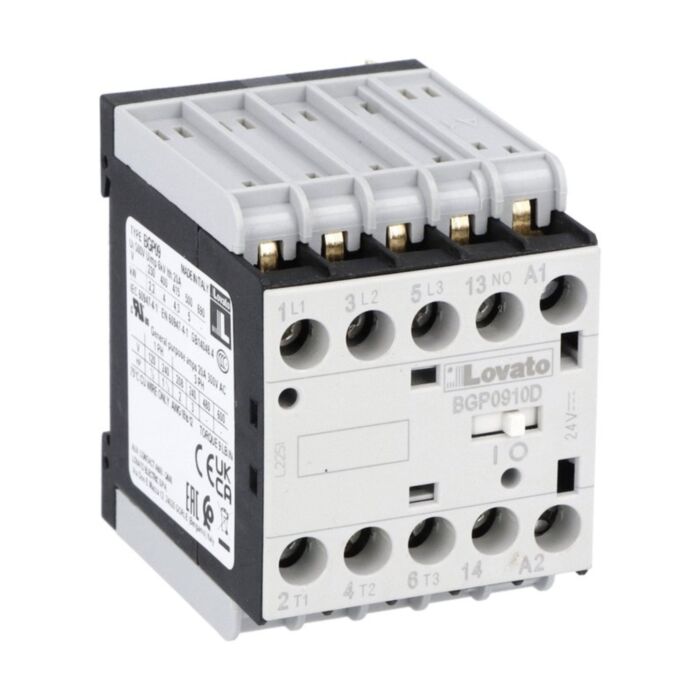

The Lovato BGP09 three‑pole contactor SKU 11BGP0910D110 delivers reliable switching for AC motor loads, offering 9A AC‑3 at 400V and a robust 20A Ith. Fitted with a 110V DC coil and 1NO auxiliary contact, it integrates easily into control panels. A rear PCB solder pin and screw or 35mm DIN rail mounting provide flexible installation across OEM and maintenance environments.

Engineered to IEC/EN 60947-1 and 60947-4-1 with UL/CSA approvals, the BGP09 ensures safety and endurance. Rated Ui 500V and Uimp 6kV, it withstands demanding environments from -50 to +70°C, up to 3000m altitude, pollution degree 3. A 20,000,000-cycle mechanical life supports long service, while terminal torque 0.8–1 Nm simplifies secure wiring. At just 240 g, it suits compact assemblies and delivers 5 HP at 480V under UL/CSA.

Key Benefits

• 9A AC-3 at 400V for dependable motor switching
• 110V DC coil suits common control voltages
• Built-in 1NO auxiliary contact for signalling
• Screw or 35mm DIN rail mounting flexibility
• High insulation ratings: Ui 500V, Uimp 6kV
• Wide -50 to +70°C operating temperature range
• Long mechanical life rated at 20,000,000 cycles

Technical Specification

• Product type designation: BGP09
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 500 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 20 A
• Terminal tightening torque: 0.8 to 1 Nm
• Weight: 240 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to +70 °C
• Storage temperature: -60 to +80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BGP09 three-pole contactor (11BGP0910D110)
• Integrated 1NO auxiliary contact
• Basic installation leaflet

Applications

• AC motor control up to 9A AC-3 at 400V
• UL/CSA applications up to 5 HP at 480V
• OEM machinery and compact control panels
• General-purpose switching to 20 A AC1
• Installations requiring -50 to +70°C operating range

Safety note: Install and service only by qualified personnel. Isolate power before work, follow IEC/EN 60947 guidance, and tighten terminals to 0.8–1 Nm. Operate within the stated ratings and environmental limits.
