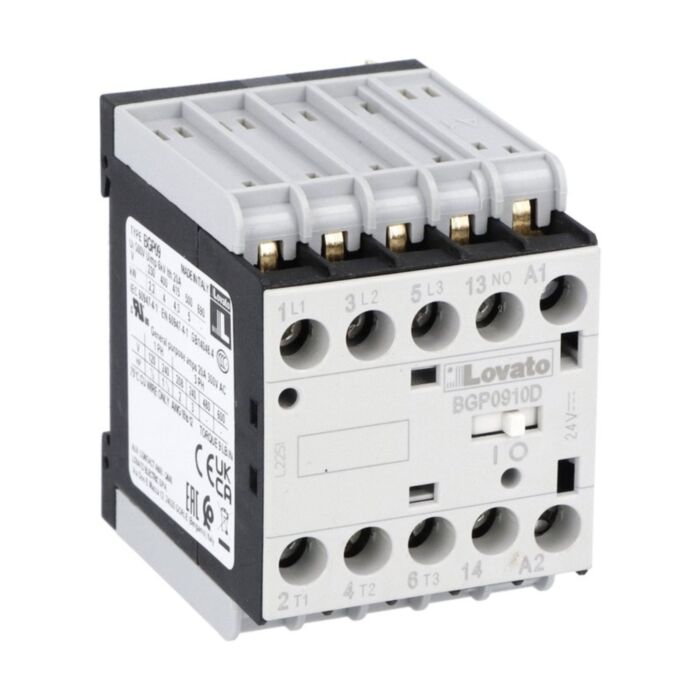

11BGP0910D012 - MINICONTACTOR 3P+1NC 9A AC3 DC REAR PIN
MPN: 11BGP0910D012
Alt. SKU: BGP0910D012
Special Price
£49.24
£41.03
Regular Price
£82.06
Why Choose the 11BGP0910D012?
Lovato’s 11BGP0910D012 is a compact three‑pole contactor engineered for dependable control in demanding panels. Featuring a 12V DC coil, 9A AC‑3 rating at 400V and an integrated 1NO auxiliary contact, it suits motor duties up to 4.0 kW. Flexible installation includes screw or 35 mm DIN rail mounting, with a rear PCB solder pin connection for straightforward board integration.
Built on the BGP09 platform, this contactor combines robust electrical endurance with broad environmental capability. It offers Ui 500 V and 6 kV impulse withstand, Ith 20 A, and a mechanical life of 20,000,000 cycles. Rated for -50 to +70 °C operation, up to 3000 m altitude, pollution degree 3, and compliant with IEC/EN 60947-1/-4-1 and UL/CSA standards.
Key Benefits
- Reliable 9A AC‑3 performance at 400 V for motor switching.
- 12 V DC coil for low‑voltage industrial control circuits.
- Integrated 1NO auxiliary contact simplifies status signalling.
- Mechanical life rated 20,000,000 cycles for long service.
- Operates from -50 to +70 °C in extreme temperatures.
- 6 kV impulse withstand and Ui 500 V improve resilience.
- Screw or 35 mm DIN rail mounting for fast installation.
- Rear PCB solder pin connection enables straightforward board integration.
Technical Specification
- Product type designation: BGP09
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 20 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 240 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BGP09 three‑pole contactor (SKU 11BGP0910D012), 12 V DC coil
- Integrated 1NO auxiliary contact
- Rear PCB solder pin connection
- Installation and safety information
Applications
- Motor control up to 9A AC‑3 / 4.0 kW at 400 V
- OEM control panels and machinery
- HVAC fans, pumps and conveyors
- Low‑voltage control systems using 12 V DC coils
- Switchgear and distribution assemblies requiring IEC/UL compliance
Frequently Asked Questions
What is the coil voltage and type?
It has a 12 V DC coil for low‑voltage control circuits.
How can this contactor be mounted?
It supports screw or 35 mm DIN rail mounting and includes a rear PCB solder pin connection.
What are the key electrical ratings?
It is rated 9A AC‑3 at 400 V (4.0 kW), Ith 20 A, Ui 500 V and Uimp 6 kV.
Does it include an auxiliary contact?
Yes, it has a built‑in 1NO auxiliary contact.
Which standards does it conform to?
It conforms to IEC/EN 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA equivalents.
Safety note: Install and commission only by qualified personnel. Isolate all power before wiring, follow IEC/EN 60947 guidance and the manufacturer’s instructions, and tighten terminals to 0.8–1 Nm.
| Manufacturer Part Number | 11BGP0910D012 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975145135 |
| Alternative Product SKU | BGP0910D012 |
