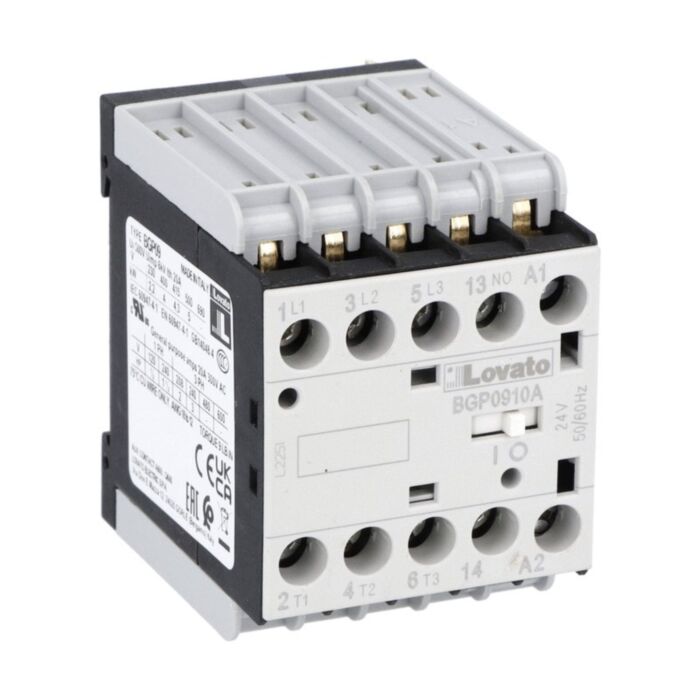

11BGP0910A024 - 3P MINICONTACTOR 1NC 9A AC3 REAR PIN

Why Choose the 11BGP0910A024?

Lovato’s BGP09 three‑pole contactor (SKU 11BGP0910A024) delivers dependable motor switching with an AC‑3 rating of 9A at 400V (4.0 kW) and 5 HP at 480V. The 24VAC 50/60Hz coil ensures straightforward control integration, while a built‑in 1NO auxiliary contact supports signalling and interlocks. Compact and versatile, it is ideal for panel builders seeking reliable, standards‑compliant performance in industrial and OEM applications.

Designed for durability, the BGP09 offers 500 V insulation and 6 kV impulse withstand, with a mechanical life rated at 20,000,000 cycles. It mounts via screw or 35mm DIN rail and features a rear PCB solder pin for panel integration. Operating from −50 to +70 °C, it meets IEC/EN, UL and CSA standards, with precise terminal torque of 0.8–1 Nm for secure terminations.

Key Benefits

• Reliable 9A AC-3 rating at 400 V for small motors.
• 24VAC 50/60Hz coil simplifies control circuit standardisation.
• Integrated 1NO auxiliary contact for signalling or interlocking.
• Flexible screw or 35mm DIN rail mounting.
• Robust 6 kV impulse withstand and 500 V insulation.
• Wide -50 to +70 °C operating temperature range.
• Long mechanical life of 20,000,000 cycles.
• UL, CSA and IEC/EN 60947 compliant device.

Technical Specification

• Product type designation: BGP09
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 500 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 20 A
• Terminal tightening torque: 0.8 to 1 Nm
• Weight: 198 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to +70 °C
• Storage temperature: -60 to +80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BGP09 3-pole contactor (11BGP0910A024)
• Built-in 1NO auxiliary contact
• Installation leaflet

Applications

• Motor control up to 4.0 kW at 400 V (AC-3)
• OEM machinery panels and industrial control cabinets
• Pumps, fans and compressors within stated ratings
• General-purpose switching in automation circuits

Safety note: Installation and maintenance must be performed by qualified personnel. Isolate all power sources before work, observe the specified terminal torque, and use within the stated ratings and environmental limits.
