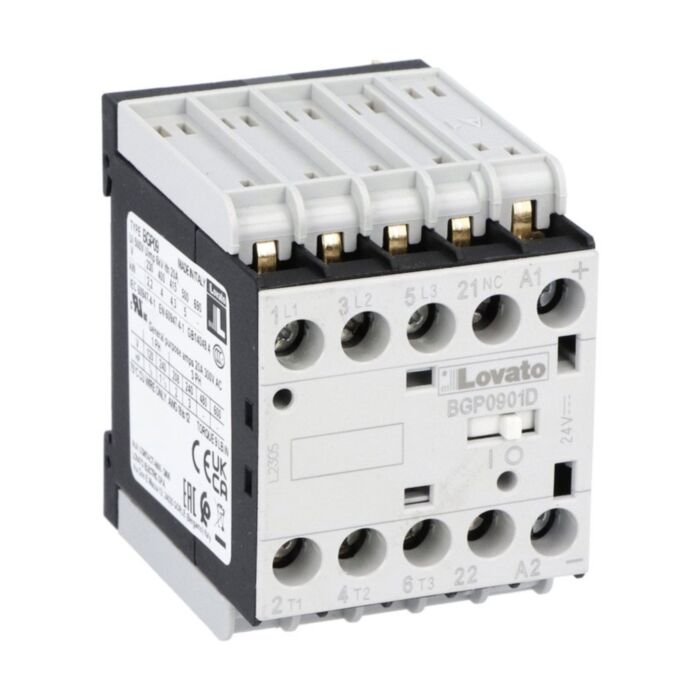

11BGP0901D220 - MINICONTACTOR 3P+1NC 9A AC3 DC REAR PIN

Why Choose the 11BGP0901D220?

The Lovato 11BGP0901D220 is a three-pole contactor designed for dependable motor and load switching. Featuring a 220 V DC coil, it delivers AC3 performance of 9 A (4.0 kW) at 400 V and AC1 current up to 20 A. A built-in 1NC auxiliary contact simplifies control circuits, while insulation ratings of Ui 500 V and Uimp 6 kV support reliable operation in industrial panels.

Part of the BGP09 series, this contactor is engineered for longevity with a mechanical life of 20,000,000 cycles and a wide -50 to +70 °C operating range. It supports screw or 35 mm DIN rail mounting for flexible installation. Compliance with IEC/EN 60947-1 and 60947-4-1, plus UL and CSA standards, makes it suitable for demanding industrial automation and building services applications.

Key Benefits

• Three-pole design for reliable industrial motor and load control.
• 220 V DC coil ensures stable performance in DC control circuits.
• AC3 9 A (4.0 kW at 400 V) capability for motors.
• AC1 20 A rating for resistive load switching.
• Built-in 1NC auxiliary contact simplifies interlocking and signalling.
• Ui 500 V and 6 kV impulse withstand enhance insulation safety.
• Screw or 35 mm DIN rail mounting speeds panel installation.

Technical Specification

• Product type designation: BGP09
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 500 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 20 A
• Terminal tightening torque: 0.8 to 1 Nm
• Weight: 240 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to +70 °C
• Storage temperature: -60 to +80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BGP09 three-pole contactor (SKU 11BGP0901D220)
• Built-in 1NC auxiliary contact
• Installation leaflet
• Manufacturer’s datasheet (download)

Applications

• Three-phase motor control up to 4.0 kW at 400 V AC3
• Pumps, fans, and conveyors within 9 A AC3 duty at 400 V
• Switching resistive heating and lighting circuits up to 20 A AC1
• Industrial automation and machine control panels
• HVAC and building services control using 220 VDC coils

Safety note: Install and service only by qualified personnel. Isolate all power sources before work and follow IEC/EN 60947 guidelines and local regulations.
