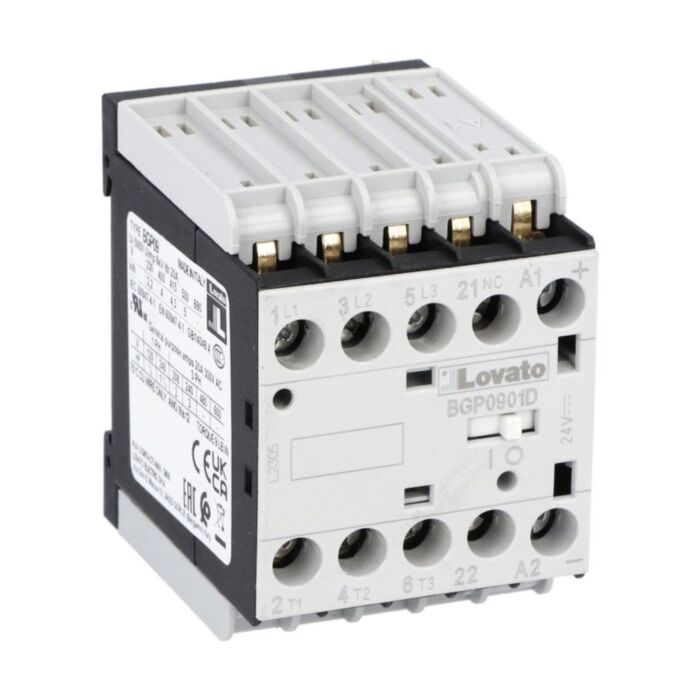

11BGP0901D110 - MINICONTACTOR 3P+1NC 9A AC3 DC REAR PIN

Why Choose the 11BGP0901D110?

Lovato’s three‑pole contactor, SKU 11BGP0901D110, is engineered for dependable motor and load control in industrial panels. With a 110 V DC coil and AC3 rating of 9 A (4.0 kW at 400 V), it delivers compact, efficient switching. A built‑in 1NC auxiliary contact and rear PCB solder pin interface support streamlined integration, while screw or 35 mm DIN‑rail mounting provides flexible installation.

Part of the BGP09 series, it offers 20,000,000 mechanical cycles and operates from −50 to +70 °C, ensuring durability in harsh environments. Rated Ui 500 V with 6 kV impulse withstand and Ith 20 A, it installs with 0.8–1 Nm terminal torque and weighs 240 g. Suitable up to 3000 m altitude, it conforms to IEC/EN 60947 and UL/CSA standards for assured performance and compliance.

Key Benefits

• 9 A AC3 at 400 V, up to 4.0 kW motor switching.
• 110 V DC coil for stable, low-noise control circuits.
• Built-in 1NC auxiliary contact simplifies signalling.
• Robust −50 to +70 °C operating temperature range.
• Long mechanical life rated at 20,000,000 cycles.
• Flexible screw or 35 mm DIN-rail mounting options.
• High dielectric strength: Ui 500 V, Uimp 6 kV.

Technical Specification

• Product type designation: BGP09
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 500 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 20 A
• Terminal tightening torque: 0.8 to 1 Nm
• Weight: 240 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to +70 °C
• Storage temperature: -60 to +80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BGP09 three‑pole contactor (SKU 11BGP0901D110)
• Integrated 1NC auxiliary contact
• Rear PCB solder pin interface
• Screw and 35 mm DIN‑rail mounting capability

Applications

• Motor starters up to 4.0 kW at 400 V (AC3 9 A)
• General AC load switching in control panels
• OEM machinery requiring 110 V DC coil control
• HVAC, pumps, fans and conveyors
• Installations operating in wide ambient temperatures

Safety note: Installation must be performed by qualified personnel. Isolate all power before work, apply 0.8–1 Nm terminal torque, and follow IEC/EN 60947 and local regulations for safe operation.
