11BGP0901D060 - MINICONTACTOR 3P+1NC 9A AC3 DC REAR PIN
MPN: 11BGP0901D060
Alt. SKU: BGP0901D060
Special Price
£49.24
£41.03
Regular Price
£82.06
Why Choose the 11BGP0901D060?

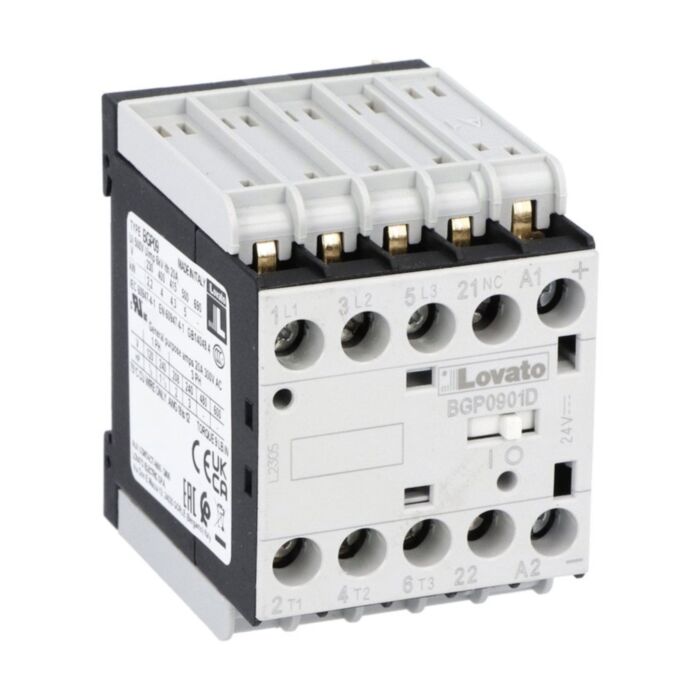

The Lovato BGP09 three-pole contactor (SKU 11BGP0901D060) delivers dependable motor and load switching with a 60 V DC coil. Rated AC-3 9 A/4.0 kW at 400 V and AC-1 20 A, it includes a built‑in 1NC auxiliary contact for control circuits. A rear PCB solder pin enables convenient board-level connections in compact assemblies.
Designed for durability and safety, the BGP09 features Ui 500 V and Uimp 6 kV, with mechanical life rated at 20,000,000 cycles. It mounts by screw or on 35 mm DIN rail, operates from −50 to +70 °C, and meets IEC/EN, UL and CSA standards for industrial control equipment.
Key Benefits
- Reliable 3-pole switching with AC-3 9A at 400V, 4.0 kW.
- 60V DC coil for stable control in DC-driven systems.
- Integrated 1NC auxiliary contact for straightforward interlocking or signalling.
- Robust 20,000,000-cycle mechanical life for long service intervals.
- Wide operating temperature range from -50 to +70 °C.
- Flexible screw or 35 mm DIN rail mounting options.
- High insulation and impulse withstand: Ui 500 V, Uimp 6 kV.
- Rear PCB solder pin facilitates compact board-level integration.
Technical Specification
- Product type designation: BGP09
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 20 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 240 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BGP09 three-pole contactor, SKU 11BGP0901D060
- Integrated 1NC auxiliary contact
- Rear PCB solder pins
Applications
- Motor control up to 4.0 kW at 400 V (AC-3)
- General-purpose resistive loads to 20 A (AC-1)
- Industrial automation panels requiring 60 V DC coil control
- HVAC, pumping and conveying equipment switching
- OEM machinery with screw or 35 mm DIN rail mounting
Frequently Asked Questions
What is the AC-3 rating at 400 V?
It is rated 9 A / 4.0 kW at 400 V AC.
What coil voltage does this contactor use?
It has a 60 V DC coil.
Does it include auxiliary contacts?
Yes, it includes one built-in 1NC auxiliary contact.
How can the contactor be mounted?
It can be mounted by screw or on a 35 mm DIN rail.
Which standards does it comply with?
IEC/EN 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA equivalents.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate all power before work and tighten terminals to the specified 0.8–1 Nm torque.
| Manufacturer Part Number | 11BGP0901D060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975144947 |
| Alternative Product SKU | BGP0901D060 |
