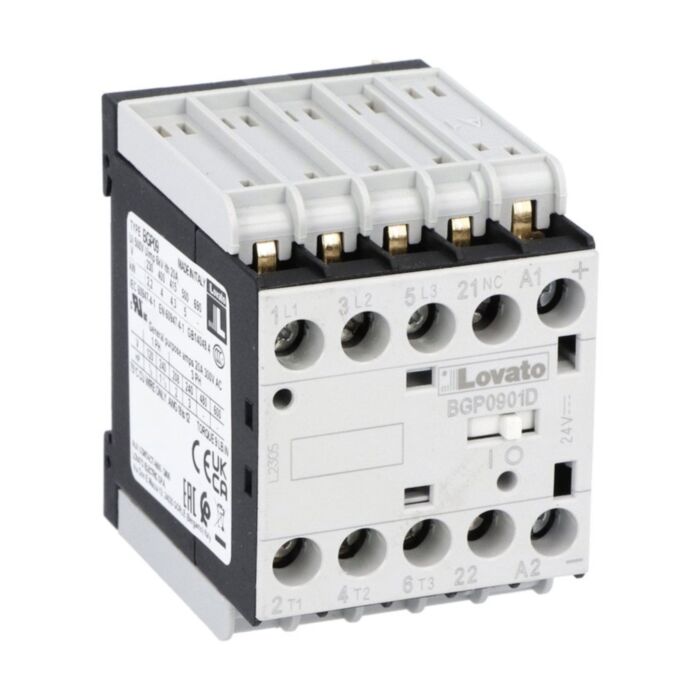

11BGP0901D048 - MINICONTACTOR 3P+1NC 9A AC3 DC REAR PIN
MPN: 11BGP0901D048
Alt. SKU: BGP0901D048
Special Price
£49.24
£41.03
Regular Price
£82.06
Why Choose the 11BGP0901D048?
Lovato’s BGP09 three-pole contactor (SKU 11BGP0901D048) delivers dependable motor and general-load switching with an IEC AC3 rating of 9 A at 400 V and a 48 V DC coil. The compact design includes a built-in 1NC auxiliary contact for status signalling and control interlocks, supporting efficient panel layouts and streamlined wiring in industrial automation, HVAC, pumping and materials handling applications.
Engineered for tough environments, it offers Ui 500 V insulation, 6 kV impulse withstand, and a broad -50 to +70 °C operating range. With AC1 Ith of 20 A, screw or 35 mm DIN rail mounting, and compliance to IEC/EN, UL and CSA standards, the BGP09 combines high endurance (20,000,000 mechanical cycles) with straightforward installation and reliable service across varied installations.
Key Benefits
- Reliable motor switching up to 9 A AC3 at 400 V
- 48 V DC coil enables simple, noise-free control circuits
- Built-in 1NC auxiliary contact streamlines interlocks and signalling
- Wide operating range from -50 to +70 °C for harsh sites
- High endurance with 20,000,000 mechanical operating cycles
- Robust insulation: Ui 500 V and 6 kV impulse withstand
- Flexible screw or 35 mm DIN rail mounting
- Meets IEC, UL and CSA standards for global compliance
Technical Specification
- Product type designation: BGP09
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 20 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 240 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BGP09 three-pole contactor (48 V DC coil)
- Built-in 1NC auxiliary contact
- Installation and safety information
- Manufacturer datasheet (downloadable)
Applications
- Motor control up to 4.0 kW at 400 V (AC3)
- General-purpose switching up to 20 A (AC1)
- Industrial automation panels and OEM machinery
- HVAC systems, pumps, conveyors and small compressors
Frequently Asked Questions
What coil voltage does this contactor use?
It uses a 48 V DC coil for control.
What motor rating can it handle at 400 V?
It is rated 9 A AC3, up to 4.0 kW at 400 V.
Is there an auxiliary contact included?
Yes, it has a built-in 1NC auxiliary contact.
How can this contactor be mounted?
It supports screw mounting or 35 mm DIN rail mounting.
Which standards does it comply with?
It conforms to IEC/EN 60947-1/-4-1, UL 60947-1/-4-1 and CSA C22.2.
Safety note: Install and commission only by qualified personnel. Always isolate power before work, observe the manufacturer’s instructions and specified tightening torques, and ensure protection in accordance with applicable standards.
| Manufacturer Part Number | 11BGP0901D048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975144930 |
| Alternative Product SKU | BGP0901D048 |
