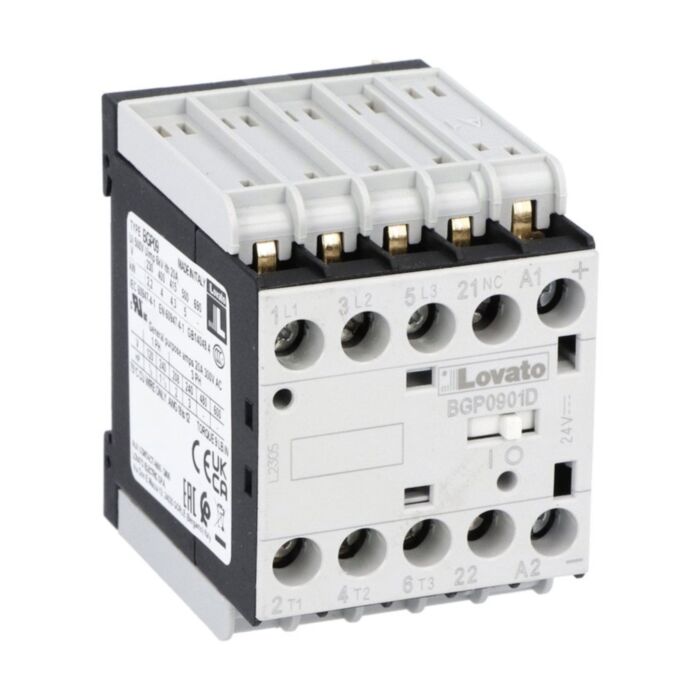

11BGP0901D024 - MINICONTACTOR 3P+1NC 9A AC3 DC REAR PIN
MPN: 11BGP0901D024
Alt. SKU: BGP0901D024
Special Price
£49.24
£41.03
Regular Price
£82.06
Why Choose the 11BGP0901D024?
Engineered for reliable motor and load switching, the Lovato 11BGP0901D024 three‑pole contactor combines a 24 V DC coil with AC‑3 9 A (4.0 kW at 400 V) performance. It integrates a 1NC auxiliary contact and rear PCB solder pin terminals, and supports screw or 35 mm DIN rail mounting for flexible installation in compact control panels and OEM assemblies.
Designated BGP09, it offers 20 A AC‑1 rating, Ui 500 V and 6 kV impulse withstand for robust insulation. With −50 to +70 °C operating range, 20,000,000 mechanical cycles, and UL/CSA 5 HP at 480 V, it meets IEC/EN 60947‑1 and 60947‑4‑1, plus UL and CSA equivalents. Rated for Pollution Degree 3 and operation up to 3000 m altitude.
Key Benefits
- AC‑3 9 A (4.0 kW at 400 V) for dependable motor switching.
- Wide −50 to +70 °C operating range suits harsh environments.
- Long mechanical life of 20,000,000 cycles reduces downtime.
- 24 V DC coil delivers precise, efficient control response.
- Built‑in 1NC auxiliary contact simplifies status signalling.
- Screw or 35 mm DIN rail mounting speeds panel assembly.
- High insulation and impulse withstand: Ui 500 V, Uimp 6 kV.
- UL/CSA 5 HP at 480 V rating supports global panel standards.
Technical Specification
- Product type designation: BGP09
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 20 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 243 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BGP09 three-pole contactor (SKU 11BGP0901D024)
- Integrated 1NC auxiliary contact
- Basic installation and safety leaflet
- Protective packaging
Applications
- Motor starters up to 9 A AC‑3 (4.0 kW at 400 V)
- Resistive and general-purpose switching up to 20 A AC‑1
- Industrial control panels with 24 V DC control circuits
- OEM machinery requiring screw or 35 mm DIN rail mounting
- IEC/EN 60947 compliant automation and distribution systems
Frequently Asked Questions
What coil voltage and type does this contactor use?
It uses a DC coil rated at 24 V.
How can this contactor be mounted in a panel?
It supports screw mounting or 35 mm DIN rail mounting.
Which auxiliary contact is included as standard?
It has a built‑in 1NC auxiliary contact.
What are the main current ratings?
AC‑3 is 9 A at 400 V (4.0 kW) and AC‑1 is 20 A.
Which standards does it conform to?
It conforms to IEC/EN 60947‑1 and 60947‑4‑1, UL 60947‑1 and 60947‑4‑1, and CSA C22.2 equivalents.
Safety note: Install and commission by qualified personnel. Isolate supply before work, tighten terminals to 0.8–1 Nm, and operate within the stated voltage, current, temperature, altitude and pollution degree in accordance with IEC/EN 60947.
| Manufacturer Part Number | 11BGP0901D024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975144923 |
| Alternative Product SKU | BGP0901D024 |
