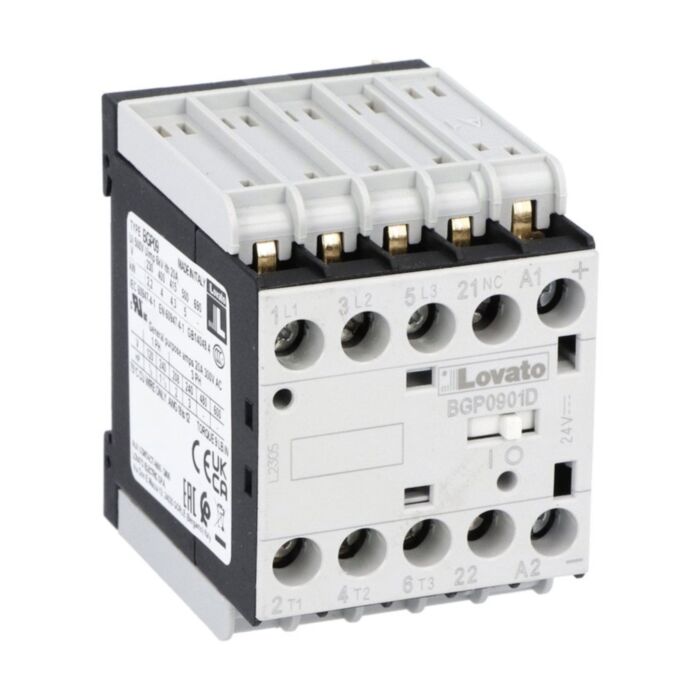

11BGP0901D012 - MINICONTACTOR 3P+1NC 9A AC3 DC REAR PIN

Why Choose the 11BGP0901D012?

Lovato’s 11BGP0901D012 is a three‑pole contactor engineered for dependable motor control. With a 12 V DC coil and AC‑3 rating of 9 A (4.0 kW) at 400 V, it also delivers 20 A AC‑1 performance. A built‑in 1NC auxiliary contact and robust screw or 35 mm DIN rail mounting make panel integration straightforward. Rated Ui 500 V and Uimp 6 kV, it meets IEC/EN 60947 and UL/CSA standards.

Designed for durability, the BGP09 platform offers a mechanical life of 20,000,000 cycles and reliable operation from −50 to +70 °C up to 3000 m altitude. Rated 5 HP at 480 V (UL/CSA), it suits demanding UK panel environments. Terminal tightening torque is 0.8–1 Nm, and Pollution Degree 3 construction supports consistent performance.

Key Benefits

• Three-pole design with 9 A AC‑3 at 400 V for motors.
• 12 V DC coil for low-voltage control circuits.
• Built‑in 1NC auxiliary contact simplifies interlocking and signalling.
• Screw or 35 mm DIN rail mounting speeds installation.
• Wide operating temperature −50 to +70 °C for harsh environments.
• Long mechanical life of 20,000,000 cycles reduces maintenance.
• 6 kV impulse withstand and 500 V insulation rating enhance safety.
• Meets IEC/EN, UL and CSA standards for assured compliance.

Technical Specification

• Product type designation: BGP09
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 500 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 20 A
• Terminal tightening torque: 0.8 to 1 Nm
• Weight: 243 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to +70 °C
• Storage temperature: -60 to +80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BGP09 three-pole contactor (SKU 11BGP0901D012)
• Integrated 12 V DC coil
• Built-in 1NC auxiliary contact
• Product documentation

Applications

• Motor starters up to 4.0 kW at 400 V (AC‑3)
• General-purpose switching up to 20 A (AC‑1)
• Industrial control panels and OEM machinery
• HVAC fans, pumps and compressors
• Conveyors, packaging and automation systems

Safety note: Install and commission only by qualified personnel. Isolate power before work, observe 0.8–1 Nm terminal torque, and operate within the stated environmental ratings and applicable IEC/UL/CSA standards.
