11BGP0901A110 - 3P MINICONTACTOR 1NC 9A AC3 REAR PIN

Why Choose the 11BGP0901A110?

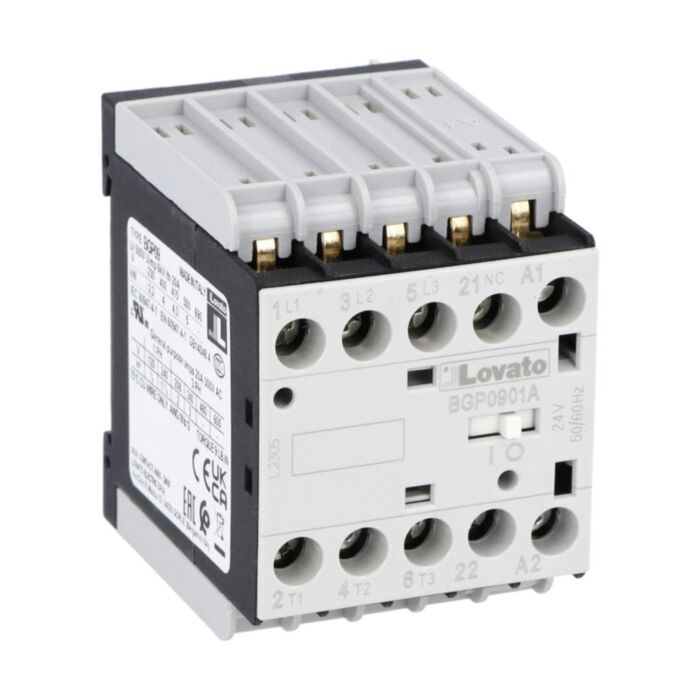

Lovato BGP09 three-pole contactor, SKU 11BGP0901A110, offers 9A AC3 at 400V and a 110VAC 50/60Hz coil. With a built-in 1NC auxiliary contact and robust design rated Ui 500V and Uimp 6kV, it suits demanding control applications. The compact unit supports screw or 35mm DIN rail mounting and provides dependable switching for motors and general-purpose loads.

Engineered for longevity, this contactor delivers 20,000,000 mechanical operations and reliable performance from -50 to +70 °C, up to 3000 m altitude. Rated Ith 20 A (AC1) and 5 HP at 480 V (UL/CSA), it meets IEC/EN 60947 and UL/CSA standards. With 0.8–1 Nm terminal torque and 200 g weight, installation is straightforward and robust.

Key Benefits

• 9A AC3 at 400 V for reliable three-phase motor switching up to 4.0 kW.
• 110VAC 50/60Hz coil for flexible integration in AC control circuits.
• Built-in 1NC auxiliary contact simplifies signalling and interlocking requirements.
• Wide operating temperature from -50 to +70 °C for harsh environments.
• Long mechanical life of 20,000,000 cycles reduces maintenance interventions.
• Screw or 35mm DIN rail mounting enables quick, versatile installation.
• Rated Ui 500 V and Uimp 6 kV for strong insulation and surge withstand.
• Conforms to IEC/EN 60947 and UL/CSA standards for assured compliance.

Technical Specification

• Product type designation: BGP09
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 500 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 20 A
• Terminal tightening torque: 0.8 to 1 Nm
• Weight: 200 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to +70 °C
• Storage temperature: -60 to +80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BGP09 three-pole contactor (SKU 11BGP0901A110)
• Integrated 1NC auxiliary contact
• Manufacturer documentation (downloadable datasheet)

Applications

• Three-phase motor control up to 4.0 kW (AC3, 400 V).
• Resistive and general-purpose loads up to 20 A (AC1).
• Control panels requiring 110 VAC coil operation.
• OEM machinery, pumps, fans and compressors within rating.

Safety note: Installation and maintenance must be performed by qualified personnel. Always isolate power before work, observe the specified torque and ratings, and follow IEC/EN 60947 and local regulations.
