11BGP0901A024 - 3P MINICONTACTOR 1NC 9A 24V50/60 REAR PI

Why Choose the 11BGP0901A024?

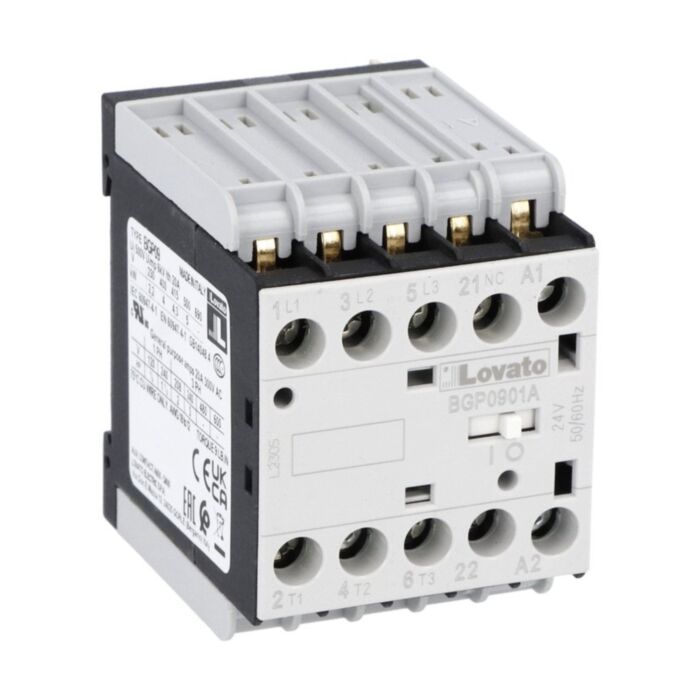

The Lovato 11BGP0901A024 is a three-pole contactor designed for reliable motor and load control. With an AC coil 50/60Hz rated at 24VAC, it delivers 9A AC3 at 400V (4.0 kW) and 20A Ith for AC1. A built-in 1NC auxiliary contact aids signalling, while rear PCB solder pins and screw/DIN rail mounting offer flexible integration in compact control panels.

Engineered for durability, the BGP09 series contactor provides 500 V rated insulation and 6 kV impulse withstand, with a mechanical life of 20,000,000 cycles. Operating from -50 to +70 °C up to 3000 m altitude and pollution degree 3, it meets IEC/EN 60947 and UL/CSA standards. Terminal tightening torque is 0.8–1 Nm for secure connections.

Key Benefits

• 24VAC 50/60Hz coil suits common control circuits and UK panels.
• 9A AC3 at 400V, 4.0 kW motor switching capability.
• 20A AC1 Ith supports resistive loads within rating.
• Built-in 1NC auxiliary contact simplifies status signalling.
• Rear PCB solder pins ease board-level integration.
• Screw or 35 mm DIN rail mounting for flexible installation.
• High endurance: 20,000,000 mechanical operations for long service life.
• Robust insulation: Ui 500 V and Uimp 6 kV for reliability.

Technical Specification

• Product type designation: BGP09
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 500 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 20 A
• Terminal tightening torque: 0.8 to 1 Nm
• Weight: 198 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to +70 °C
• Storage temperature: -60 to +80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BGP09 three-pole contactor (SKU 11BGP0901A024)
• Built-in 1NC auxiliary contact
• Rear PCB solder pins integrated on device
• Manufacturer datasheet available via download
• Protective packaging for transit

Applications

• Motor control up to 4.0 kW at 400V AC-3
• Resistive load switching up to 20 A AC-1
• Control panels with screw or 35 mm DIN rail layouts
• Automation and machinery requiring 24VAC coil control
• HVAC fans and pumps within stated ratings

Safety note: Install and commission only by qualified personnel. Isolate power before work, observe the stated ratings, tighten terminals to 0.8–1 Nm, and follow applicable IEC/EN 60947 standards.
