11BGF0910A400 - 3P MINICONTACTOR BGF09.10A 400V50/60FAST

Why Choose the 11BGF0910A400?

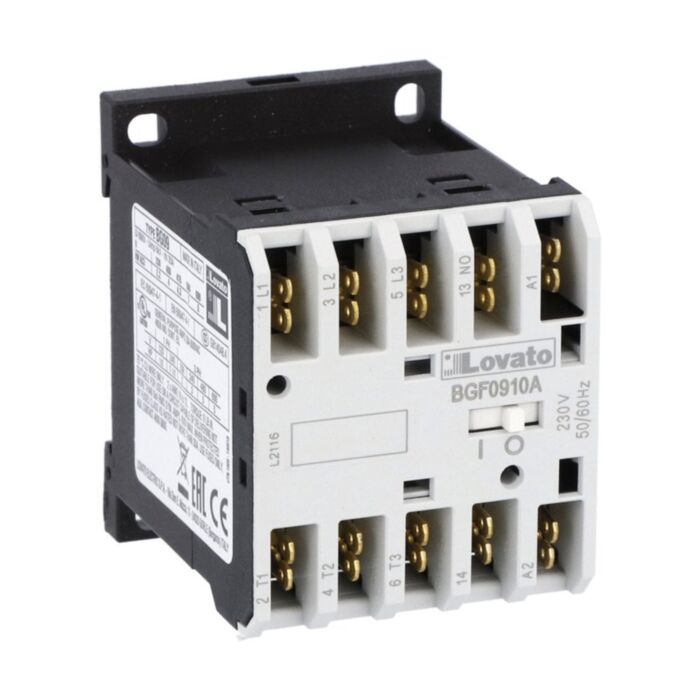

Engineered for reliable motor and load switching, the Lovato BGF09 three-pole contactor (SKU 11BGF0910A400) delivers 9A AC3 performance at 400V with a 400VAC 50/60Hz coil. It features a built-in 1NO auxiliary contact and Faston terminals for quick connections, making it ideal for compact control panels. As a robust contactor, it supports straightforward screw or 35mm DIN rail mounting to streamline installation and service.

With 690 V rated insulation and 6 kV impulse withstand, it suits demanding environments while providing up to 20 A AC1 capability. A mechanical life of 20,000,000 cycles, operating temperatures from -50 to +70 °C, and installation up to 3000 m underscore long-term durability. Conforms to IEC/EN 60947-1 and 60947-4-1, plus UL and CSA standards, for assured performance in industrial automation and panel-building applications.

Key Benefits

• 9A AC3 at 400V for dependable motor and inductive load switching.
• AC coil 400VAC 50/60Hz suits common control supply systems.
• Built-in 1NO auxiliary contact simplifies signalling and interlocks.
• Faston terminals enable quick, secure connection in compact panels.
• Screw or 35mm DIN rail mounting for flexible installation.
• High insulation 690 V and 6 kV impulse withstand.
• Wide operating temperature -50 to +70 °C for harsh environments.
• Long mechanical life rated at 20,000,000 cycles.

Technical Specification

• Product type designation: BGF09
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 20 A
• Terminal tightening torque: 0.8 to 1 Nm
• Weight: 176 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to +70 °C
• Storage temperature: -60 to +80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BGF09 three-pole contactor (SKU 11BGF0910A400)
• Integrated 1NO auxiliary contact
• Faston terminal connections
• Downloadable product datasheet

Applications

• Direct-on-line motor control up to 9A AC3 at 400V
• Switching of resistive loads up to 20A AC1
• HVAC, pump, fan and conveyor control circuits
• Industrial control panels on 35mm DIN rail
• General automation requiring a 400VAC 50/60Hz coil

Safety note: Installation and maintenance should be performed by qualified personnel. Isolate all power before work, and observe the stated voltage, current, and environmental limits per the applicable IEC/EN, UL, and CSA standards.
