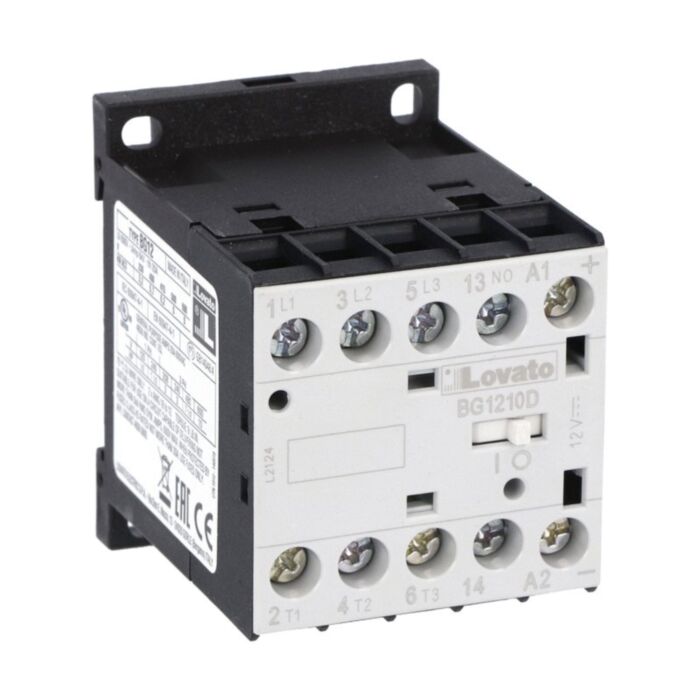

11BG1210D220 - 3P MINICONTACTOR BG12.10D 220V
MPN: 11BG1210D220
Alt. SKU: BG1210D220
Special Price
£45.37
£37.81
Regular Price
£75.61
Why Choose the 11BG1210D220?
The Lovato BG12 three-pole contactor delivers dependable motor switching in compact form. SKU 11BG1210D220 combines a 220V DC coil with AC3 12A performance at 400V and a built-in 1NO auxiliary contact. Flexible installation is supported via screw or 35mm DIN rail mounting. Built to IEC/EN 60947 standards and rated Ui 690 V with 6 kV impulse withstand, it suits demanding industrial control panels.
With an IEC Ith (AC1) of 20 A, mechanical life rated 20,000,000 cycles, and operation from -50 to +70 °C, this contactor is engineered for reliability across harsh environments up to 3000 m altitude, pollution degree 3. It carries a UL/CSA horsepower rating of 7.5 HP at 480V and integrates easily in motor starters, pumps, fans and general automation requiring consistent AC3 switching.
Key Benefits
- Three-pole BG12 contactor with DC coil for precise 220V control.
- AC3 12A at 400V supports motors up to 5.7 kW.
- Built-in 1NO auxiliary contact simplifies signalling and interlocking.
- Dual mounting: screw fixings or 35mm DIN rail.
- High insulation: Ui 690 V and 6 kV impulse withstand.
- Wide operating temperature -50 to +70 °C for harsh sites.
- Long mechanical life rated 20,000,000 cycles reduces downtime.
- UL/CSA ratings include 7.5 HP at 480V for North American panels.
Technical Specification
- Product type designation: BG12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 20 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 200 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG12 contactor unit (SKU 11BG1210D220)
- Built-in 1NO auxiliary contact
Applications
- Motor starters up to 5.7 kW at 400V (AC3)
- Pumps, fans and conveyors requiring 12A AC3 switching
- Resistive load control up to 20 A (AC1)
- Industrial control panels and automation systems
Frequently Asked Questions
What is the rated AC3 operating current and power?
It is rated 12 A at 400 V, up to 5.7 kW.
Does it have an auxiliary contact built in?
Yes—one normally open (1NO) auxiliary contact is integrated.
What coil voltage does SKU 11BG1210D220 use?
It uses a 220 V DC coil.
How can the contactor be mounted?
It supports screw mounting or 35 mm DIN rail installation.
Which standards does this contactor comply with?
It conforms to IEC/EN 60947-1 and 60947-4-1, plus UL and CSA equivalents.
Safety note: Install and service only by qualified personnel. Isolate power before work and follow IEC/EN 60947 practices, observing the specified temperature, altitude and pollution degree limits.
| Manufacturer Part Number | 11BG1210D220 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975082959 |
| Alternative Product SKU | BG1210D220 |
| Coil Voltage | 220V |
