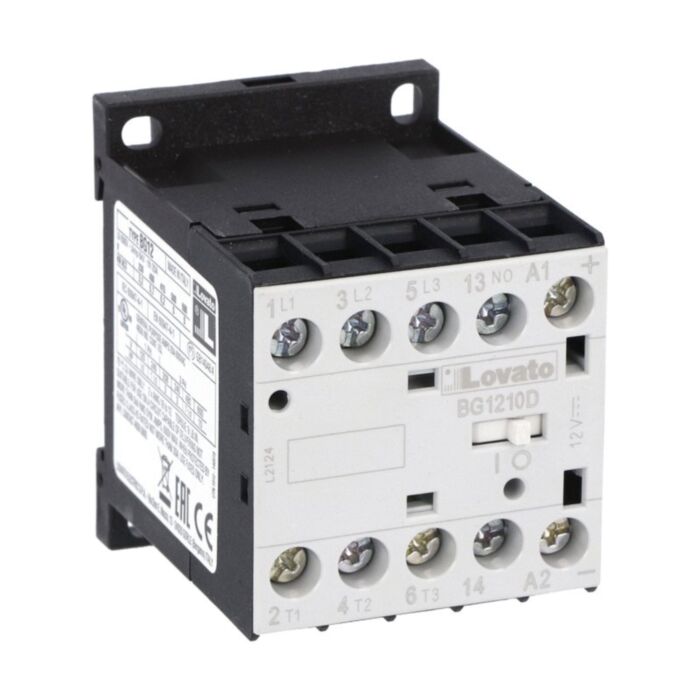

11BG1210D048 - 3P MINICONTACTOR BG12.10D 48V
MPN: 11BG1210D048
Alt. SKU: BG1210D048
Special Price
£45.37
£37.81
Regular Price
£75.61
Why Choose the 11BG1210D048?
Optimise motor control with the Lovato BG12 three-pole contactor, SKU 11BG1210D048. Featuring a 48 V DC coil and an AC-3 rating of 12 A (5.7 kW at 400 V), it includes a built-in 1NO auxiliary contact for straightforward signalling. Flexible screw or 35 mm DIN rail mounting speeds panel assembly, while UL/CSA 7.5 HP at 480 V capability supports a broad range of industrial loads.
Engineered for endurance, the BG12 delivers 20,000,000 mechanical operations and dependable performance from -50 to +70 °C. With Ui 690 V and Uimp 6 kV, it withstands demanding environments up to 3000 m, pollution degree 3. Conformance to IEC/EN 60947-1 and 60947-4-1, plus UL and CSA equivalents, assures compatibility and safety. Terminal screws tighten to 0.8 to 1 Nm for secure connections and stable long-term service.
Key Benefits
- 48 V DC coil for precise, reliable actuation in control circuits.
- AC-3 12 A / 5.7 kW at 400 V for dependable motor starting.
- Integrated 1NO auxiliary contact simplifies signalling and interlocking.
- Dual mounting: screw or 35 mm DIN rail for quick installation.
- High endurance: 20,000,000 mechanical cycles for long service life.
- Wide operating temperature -50 to +70 °C suits harsh environments.
- Rated Ui 690 V, Uimp 6 kV enhances insulation and surge withstand.
Technical Specification
- Product type designation: BG12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 20 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 200 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG12 three-pole contactor (SKU 11BG1210D048)
- Integrated 1NO auxiliary contact
- Mounting and safety instructions
- Manufacturer datasheet (digital download)
Applications
- Motor control duties up to AC-3 12 A / 5.7 kW at 400 V
- General-purpose switching of resistive loads up to 20 A AC-1
- Control panels requiring 48 V DC coil interfacing
- HVAC fans, pumps and small compressors
- Industrial automation, conveyors and packaging lines
Frequently Asked Questions
What coil voltage does this contactor use?
This model has a DC coil rated at 48 V, suitable for 48 VDC control circuits.
How many auxiliary contacts are built in?
It includes one normally open (1NO) auxiliary contact as standard.
Can it be DIN-rail mounted?
Yes, it mounts by screw or on a 35 mm DIN rail for flexibility.
What is the operating temperature range?
The specified operating range is -50 to +70 °C, with storage -60 to +80 °C.
Which standards does it conform to?
It conforms to IEC/EN 60947-1 and 60947-4-1, with UL and CSA equivalents.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate power before work, follow IEC/EN 60947 requirements and local regulations, and tighten terminals to 0.8 to 1 Nm to ensure safe operation.
| Manufacturer Part Number | 11BG1210D048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975082911 |
| Alternative Product SKU | BG1210D048 |
| Coil Voltage | 48V |
