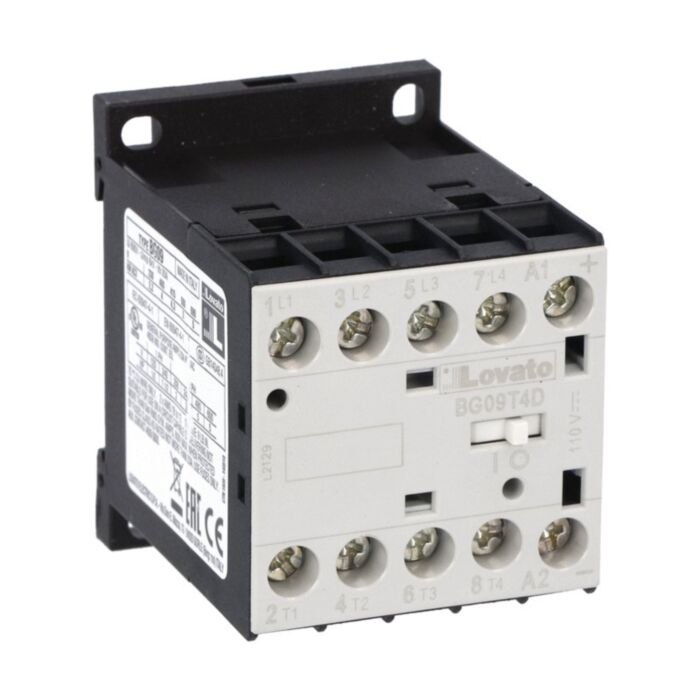

11BG09T4D012 - 4P MINICONTACTOR BG09.T4D 12VDC
MPN: 11BG09T4D012
Alt. SKU: BG09T4D012
Special Price
£45.54
£37.95
Regular Price
£75.90
Why Choose the 11BG09T4D012?
Engineered by Lovato, the BG09 four-pole contactor with a 12 VDC coil delivers dependable switching for motors and general loads. Rated 20 A AC1 and 9 A / 4.0 kW AC3 at 400 V, it also carries a 5 HP rating at 480 V (UL/CSA). Versatile mounting on screw fixings or 35 mm DIN rail simplifies panel integration. Identify your unit with SKU 11BG09T4D012 for confident specification and reordering.
Built for demanding environments, this BG09 device offers 690 V rated insulation and 6 kV impulse withstand, with a mechanical life of 20,000,000 cycles. Operates from -50 to +70 °C and stores from -60 to +80 °C, up to 3000 m altitude, pollution degree 3. Terminal tightening torque is 0.8 to 1 Nm. Conforms to IEC/EN 60947-1/-4-1, UL 60947-1/-4-1 and CSA C22.2 standards, with Sustainability certification.
Key Benefits
- Four-pole switching for flexible power and control circuits.
- 12 VDC coil suits low-voltage control systems.
- AC1 rating 20 A for general-purpose loads.
- AC3 performance 9 A / 4.0 kW at 400 V motors.
- Robust 690 V Ui and 6 kV impulse withstand.
- Wide -50 to +70 °C operating temperature range.
- Long mechanical life of 20,000,000 cycles.
- Screw or 35 mm DIN rail mounting for easy installation.
Technical Specification
- Product type designation: BG09
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 20 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 219 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG09 four-pole contactor (SKU 11BG09T4D012)
- Factory-fitted 12 VDC coil
- Manufacturer documentation where supplied
Applications
- Motor starters up to 9 A / 4.0 kW at 400 V (AC3)
- General-purpose AC1 switching up to 20 A
- Low-voltage control panels requiring 12 VDC coils
- Industrial machinery and automation panels
- DIN rail or screw-mounted assemblies in distribution and control
Frequently Asked Questions
What coil voltage does this contactor use?
It has a DC coil rated at 12 V.
What are the key current and power ratings?
It is rated 20 A in AC1 and 9 A / 4.0 kW in AC3 at 400 V, plus 5 HP at 480 V (UL/CSA).
How can the contactor be mounted?
It supports screw mounting or 35 mm DIN rail mounting.
What environmental limits does it support?
Operating temperature is -50 to +70 °C; storage is -60 to +80 °C.
Which standards does it conform to?
It conforms to IEC/EN 60947-1/-4-1, UL 60947-1/-4-1 and CSA C22.2 standards.
Safety note: Installation and commissioning must be performed by qualified personnel. Isolate power before work, tighten terminals to 0.8–1 Nm, and operate within the stated electrical and environmental ratings.
| Manufacturer Part Number | 11BG09T4D012 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975082751 |
| Alternative Product SKU | BG09T4D012 |
| Coil Voltage | 12VDC |
