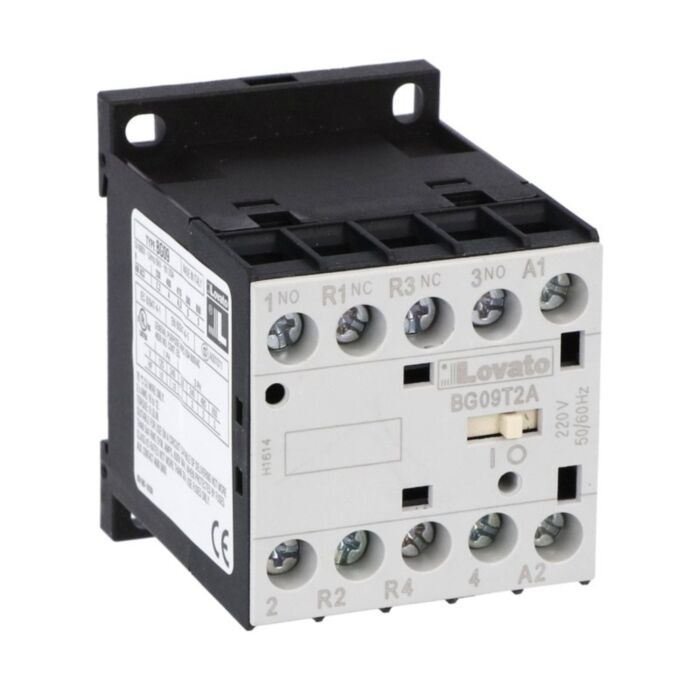

11BG09T2A22060 - 4P MINICONTACTOR BG09.T2A 220V 60HZ

Why Choose the 11BG09T2A22060?

Engineered for dependable control, the Lovato BG09 four‑pole contactor delivers flexible switching with a 2NO/2NC configuration and a 220 V AC 60 Hz coil. Rated AC3 9A/4.0Kw at 400 V and AC1 Ith 20 A, it suits motor and resistive loads alike. With screw or 35 mm DIN rail mounting, installation is straightforward. SKU 11BG09T2A22060 is ideal for control panels requiring robust performance and multi‑standard compliance.

Built to last, this BG09 series device offers Ui 690 V and 6 kV impulse withstand, a mechanical life of 20,000,000 cycles, and reliable operation from −50 to +70 °C. Weighing 186 g with terminal tightening torque of 0.8 to 1 Nm, it meets IEC/EN 60947-1 and -4-1, UL and CSA standards. Pollution degree 3 and operation up to 3000 m support demanding environments.

Key Benefits

• Four-pole, 2NO/2NC configuration enables versatile power and control switching.
• Rated AC3 9A/4.0Kw at 400V for dependable motor control duties.
• AC1 Ith 20A supports resistive loads with confident current capacity.
• Ui 690 V and 6 kV Uimp deliver strong dielectric withstand performance.
• Mechanical life of 20,000,000 cycles reduces downtime and maintenance interventions.
• Screw or 35 mm DIN rail mounting simplifies panel installation and retrofits.
• Operates from -50 to +70 °C for wide ambient temperature ranges.
• Complies with IEC/EN, UL and CSA standards for assured global acceptance.

Technical Specification

• Product type designation: BG09
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Terminal tightening torque: 0.8 to 1 Nm
• Weight: 186 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to +70 °C
• Storage temperature: -60 to +80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BG09 four-pole contactor (SKU 11BG09T2A22060)
• Factory-fitted 220 V AC 60 Hz coil

Applications

• Motor switching up to 9A/4.0Kw at 400V AC3
• Resistive load control to AC1 Ith 20A
• Control circuits requiring four-pole, 2NO/2NC configurations
• Panels using screw fixing or 35 mm DIN rail mounting
• Installations designed to IEC/EN 60947 standards

Safety note: Installation must be performed by qualified personnel with power isolated. Follow IEC/EN 60947 requirements, observe terminal torque 0.8 to 1 Nm, and respect environmental limits before energising.
