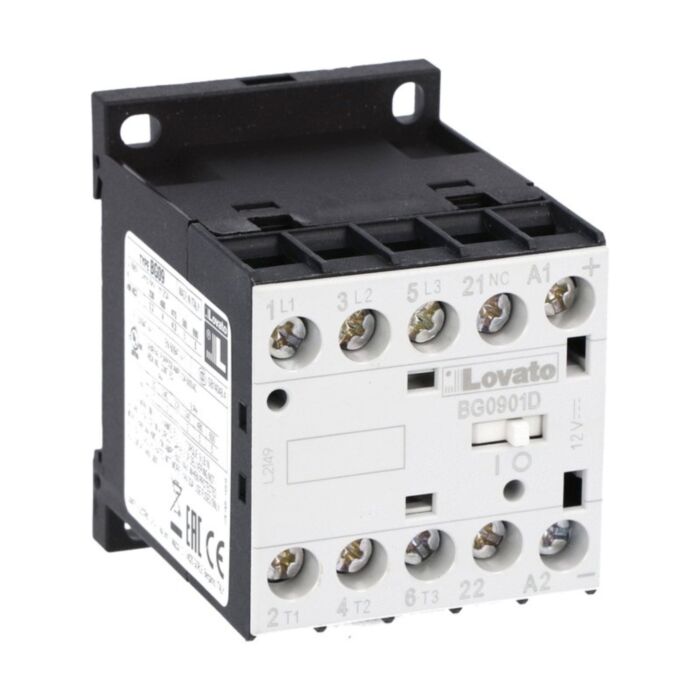

11BG0901D060 - 3P MINICONTACTOR BG09.01D 60V
MPN: 11BG0901D060
Alt. SKU: BG0901D060
Special Price
£42.72
£35.60
Regular Price
£71.21
Why Choose the 11BG0901D060?
Designed for reliable motor control, the Lovato BG09 three‑pole contactor combines a 60 V DC coil with AC3 performance of 9 A / 4.0 kW at 400 V. Model 11BG0901D060 integrates a 1NC auxiliary contact with mirror contact function for dependable feedback in safety circuits. Compact and versatile, it installs quickly using screws or on a 35 mm DIN rail, fitting neatly into control panels and OEM machinery.
Built to demanding standards, this contactor is rated Ui 690 V with 6 kV impulse withstand, ensuring robust insulation in harsh industrial environments. It offers 20,000,000 mechanical cycles and operates from -50 to +70 °C up to 3000 m altitude, Pollution Degree 3. Conforming to IEC/EN and UL/CSA 60947, and delivering 5 HP at 480 V (UL/CSA), it provides dependable switching for motors and resistive loads when correctly specified.
Key Benefits
- AC3 9 A / 4.0 kW at 400 V for compact motor control
- 60 V DC coil for stable, efficient operation
- Built-in 1NC auxiliary with mirror contact function
- Quick screw or 35 mm DIN rail mounting
- High insulation: Ui 690 V, Uimp 6 kV
- Long mechanical life: 20,000,000 operations
- Wide operating range: -50 to +70 °C, up to 3000 m
Technical Specification
- Product type designation: BG09
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 20 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 210 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG09 three-pole contactor (SKU 11BG0901D060)
- Built-in 1NC auxiliary contact
- 60 V DC coil pre-fitted
- Installation leaflet
Applications
- Motor starting up to 4.0 kW at 400 V (AC3)
- Pumps, fans and conveyors within the 9 A AC3 rating
- Control panels and OEM machinery
- General-purpose switching of resistive loads (AC1) within ratings
- Building services and HVAC equipment control
Frequently Asked Questions
What is the coil voltage of this contactor?
The coil is 60 V DC.
Does it include an auxiliary contact?
Yes, it has a built-in 1NC auxiliary with mirror contact function.
How can this contactor be mounted?
It supports screw mounting or 35 mm DIN rail installation.
What motor load ratings does it support?
It is rated AC3 9 A / 4.0 kW at 400 V and 5 HP at 480 V (UL/CSA).
Which standards does it comply with?
It conforms to IEC/EN 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA C22.2 n° 60947-1 and 60947-4-1.
Safety note: Installation and maintenance must be performed by a qualified electrician. Isolate power before work, tighten terminals to 0.8–1 Nm, and operate within the stated ratings and environmental limits.
| Manufacturer Part Number | 11BG0901D060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975082584 |
| Alternative Product SKU | BG0901D060 |
| Coil Voltage | 60V |
