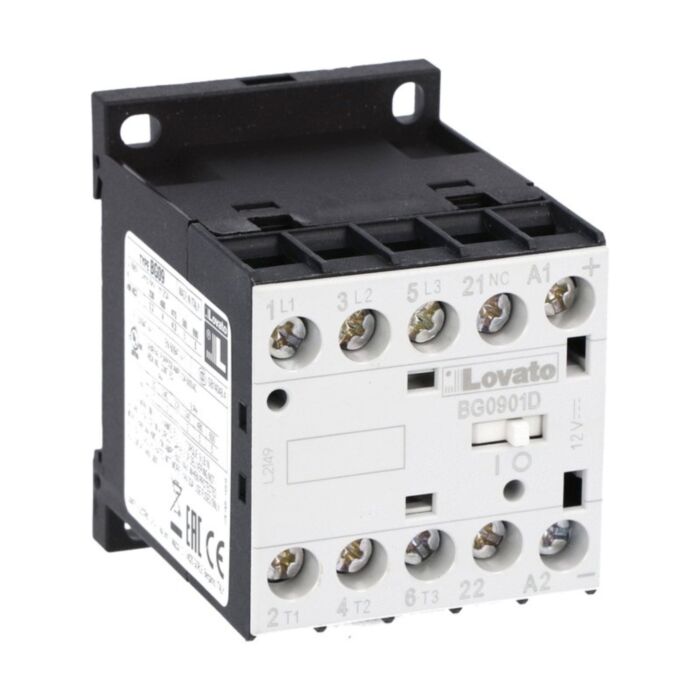

11BG0901D048 - 3P MINICONTACTOR BG09.01D 48V
MPN: 11BG0901D048
Alt. SKU: BG0901D048
Special Price
£42.72
£35.60
Regular Price
£71.21
Why Choose the 11BG0901D048?
Engineered for compact, reliable motor switching, the Lovato 11BG0901D048 is a BG09 three‑pole contactor with a 48 V DC coil and an integrated 1NC mirror auxiliary. Delivering AC‑3 performance of 9 A / 4.0 kW at 400 V, it suits mainstream industrial control panels. Robust electrical ratings (Ui 690 V, Uimp 6 kV) and DIN rail 35 mm or screw mounting ensure flexible, standards-compliant installation.
Built for longevity in demanding environments, this contactor offers 20,000,000 mechanical operations and operates from -50 to +70 °C, with storage down to -60 °C. Rated for Pollution Degree 3 and use up to 3000 m altitude, it carries IEC/EN 60947-1/-4-1 and UL/CSA compliance. A 5 HP rating at 480 V supports North American panels alongside European AC‑3 duties.
Key Benefits
- 3-pole BG09 contactor with 48 V DC coil for precise control.
- AC-3 rated 9 A / 4.0 kW at 400 V for motors.
- Built-in 1NC mirror auxiliary contact for reliable status interlocking.
- Wide operating temperature range from -50 to +70 °C.
- High electrical insulation: Ui 690 V and Uimp 6 kV withstand.
- Flexible mounting on 35 mm DIN rail or with screws.
- Long mechanical life of 20,000,000 cycles for dependable service.
Technical Specification
- Product type designation: BG09
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 20 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 224 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG09 three-pole contactor (SKU 11BG0901D048)
- Integrated 1NC auxiliary contact with mirror contact function
- 48 V DC coil pre-fitted
- Product datasheet (downloadable)
Applications
- AC-3 motor control up to 4.0 kW at 400 V
- General-purpose switching up to 9 A AC-3 duty
- UL/CSA panels requiring 5 HP at 480 V
- Control panels with 35 mm DIN rail or screw mounting
- Industrial automation operating across -50 to +70 °C
Frequently Asked Questions
What is the coil voltage and type on the 11BG0901D048?
It has a DC coil rated at 48 V.
Which auxiliary contacts are included?
It includes a built-in 1NC auxiliary with mirror contact function.
What is the AC-3 rating at 400 V?
The contactor is rated 9 A / 4.0 kW in AC-3 duty at 400 V.
How can this contactor be mounted in a panel?
It supports screw mounting or 35 mm DIN rail installation.
What standards does it conform to?
It conforms to IEC/EN 60947-1 and 60947-4-1, UL 60947-1/-4-1, and CSA C22.2 No. 60947-1/-4-1.
Safety note: Install and service only by qualified personnel. De-energise equipment before work, observe specified tightening torque, and operate strictly within the stated ratings and environmental limits.
| Manufacturer Part Number | 11BG0901D048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975080696 |
| Alternative Product SKU | BG0901D048 |
| Coil Voltage | 48V |
