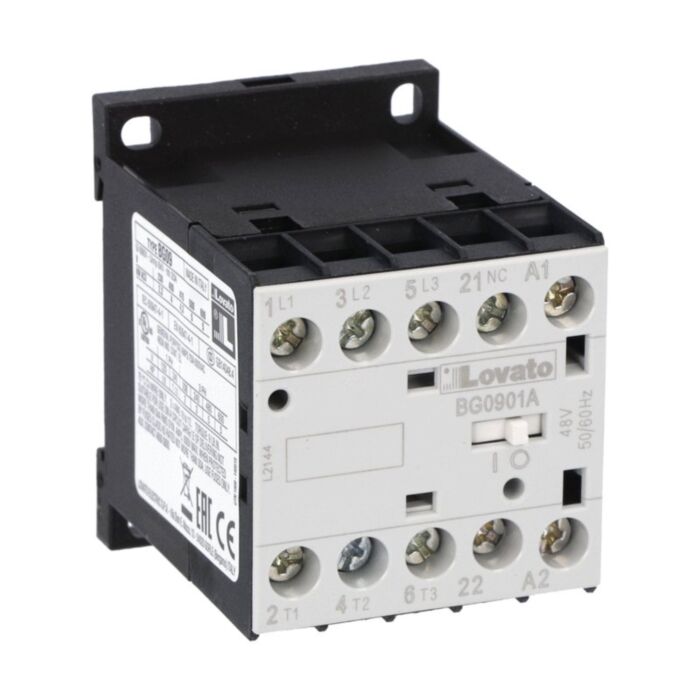

11BG0901A048 - 3P MINICONTACTOR BG09.01A 48V 50-60HZ
MPN: 11BG0901A048
Alt. SKU: BG0901A048
Special Price
£30.10
£25.08
Regular Price
£50.16
Why Choose the 11BG0901A048?
The Lovato BG09 three‑pole contactor delivers dependable switching for motors and loads, with 9A AC‑3 at 400V and a robust 48VAC 50/60Hz coil. Supplied with a 1NC auxiliary featuring a mirror contact function, it integrates cleanly into safety circuits. Rated Ith 20A and Ui 690V, the compact unit mounts via screws or on 35mm DIN rail. SKU 11BG0901A048.
Engineered to perform in harsh environments, the BG09 offers a 20,000,000‑cycle mechanical life, -50 to +70 °C operating range and installation up to 3000 m altitude. Terminals tighten to 0.8–1 Nm for secure connections. Tested to IEC/EN 60947-1 and 60947-4-1, with UL and CSA conformity, it provides reliable control in compact footprints without compromising safety or performance.
Key Benefits
- 9A AC‑3 at 400V for reliable three‑phase motor switching.
- 48VAC 50/60Hz coil simplifies control circuit compatibility.
- Built‑in 1NC mirror contact enhances safety feedback and diagnostics.
- Wide -50 to +70 °C operating range suits harsh environments.
- Mechanical life of 20,000,000 cycles reduces maintenance downtime.
- Screw or 35mm DIN rail mounting speeds panel installation.
- Rated Ui 690 V and Uimp 6 kV for robust insulation.
Technical Specification
- Product type designation: BG09
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 20 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 180 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG09 three‑pole contactor, SKU 11BG0901A048
- Built‑in 1NC auxiliary contact (mirror contact function)
- Manufacturer installation and safety information
Applications
- Motor starters up to 9A AC‑3 at 400V
- Control and automation panels requiring 48VAC coil
- Safety circuits needing mirror contact indication
- Machinery, pumps, fans and conveyors switching
Frequently Asked Questions
What coil voltage and frequency does this contactor use?
It has a 48VAC coil rated for 50/60Hz operation.
Is an auxiliary contact included?
Yes, it includes a built‑in 1NC auxiliary with mirror contact function.
How can it be mounted in a panel?
It supports screw mounting or 35mm DIN rail installation.
What is the operating temperature range?
The operating range is -50 to +70 °C.
Which standards does it conform to?
It conforms to IEC/EN 60947-1 and 60947-4-1, plus UL and CSA.
Safety note: Installation and maintenance must be performed by qualified personnel. Always isolate power before work, tighten terminals to the specified torque, and follow applicable standards and manufacturer instructions.
| Manufacturer Part Number | 11BG0901A048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975081952 |
| Alternative Product SKU | BG0901A048 |
| Coil Voltage | 48V |
