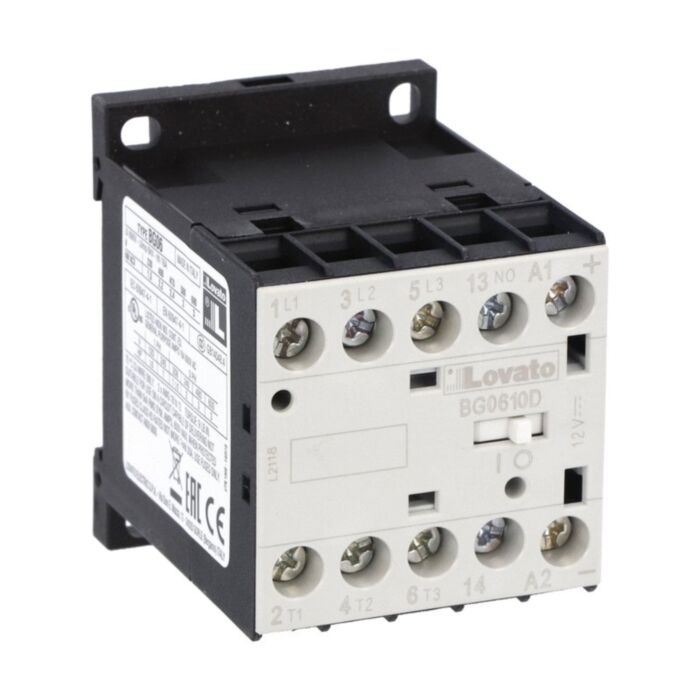

11BG0610D060 - 3P MINICONTACTOR BG06.10D 60DC
MPN: 11BG0610D060
Alt. SKU: BG0610D060
Special Price
£42.72
£35.60
Regular Price
£71.21
Why Choose the 11BG0610D060?
Lovato’s BG06 three-pole contactor, SKU 11BG0610D060, delivers dependable switching for compact motor starters and control circuits. Featuring a 60 V DC coil and a built-in 1NO auxiliary contact, it is rated 6 A AC3 at 400 V (2.2 kW) and 16 A AC1. Installation is straightforward via screws or 35 mm DIN rail, while robust dielectric ratings of Ui 690 V and Uimp 6 kV support demanding industrial panels.
Engineered for endurance, the BG06 platform offers 20,000,000 mechanical cycles and reliable operation from -50 to +70 °C, up to 3000 m altitude, pollution degree 3. It carries a 3 HP rating at 480 V (UL/CSA) and conforms to IEC/EN 60947-1/-4-1. Secure terminations are ensured with 0.8 to 1 Nm tightening torque, making it a robust choice for space-conscious panels.
Key Benefits
- Three-pole contactor with 6 A AC3 at 400 V performance.
- 60 V DC coil for reliable control from DC supply networks.
- Built-in 1NO auxiliary contact simplifies signalling and interlocking.
- Flexible screw or 35 mm DIN rail mounting options.
- High mechanical life rated to 20,000,000 cycles.
- Wide operating temperature from -50 to +70 °C.
- Strong dielectric ratings: Ui 690 V and Uimp 6 kV.
- UL/CSA 3 HP at 480 V supports North American panels.
Technical Specification
- Product type designation: BG06
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 16 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 220 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato 11BG0610D060 3-pole contactor (60 V DC coil)
- Integrated 1NO auxiliary contact
- Installation leaflet or downloadable datasheet
- Manufacturer packaging
Applications
- AC motor starters up to 2.2 kW at 400 V (AC3)
- Control panels requiring 60 V DC coil actuation
- General-purpose switching for AC1 loads up to 16 A
- OEM machinery with screw or 35 mm DIN rail mounting
- HVAC fans and small pumps within stated ratings
Frequently Asked Questions
What is the coil voltage and type?
It uses a DC coil rated at 60 V.
What auxiliary contacts are included?
The contactor includes one built-in NO auxiliary contact (1NO).
How can this contactor be mounted?
It mounts with screws or on a 35 mm DIN rail.
What are the key electrical ratings?
AC3 is 6 A at 400 V (2.2 kW); AC1 Ith is 16 A.
Which standards does it comply with?
It conforms to IEC/EN 60947-1/-4-1 and UL/CSA equivalents.
Safety note: Install and commission only by qualified personnel. Isolate power before work, tighten terminals to 0.8–1 Nm, and operate within specified ratings, temperatures, altitude, and pollution degree 3.
| Manufacturer Part Number | 11BG0610D060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975082676 |
| Alternative Product SKU | BG0610D060 |
| Coil Voltage | 60DC |
