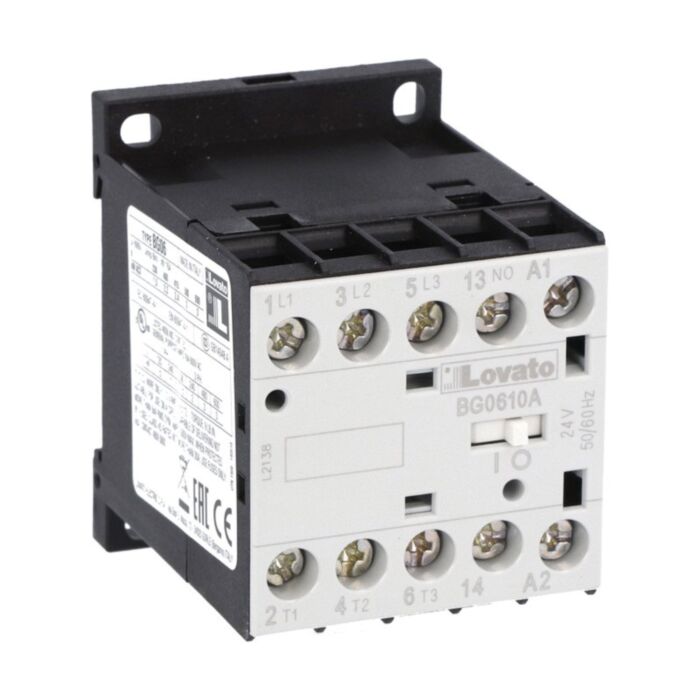

11BG0610A400 - 3P MINICONTACTOR BG06.10A 400V 50/60Hz
MPN: 11BG0610A400
Alt. SKU: BG0610A400
Special Price
£30.10
£25.08
Regular Price
£50.16
Why Choose the 11BG0610A400?
Designed for reliable motor and load switching, the Lovato BG06 three-pole contactor pairs a 400VAC 50/60Hz AC coil with AC-3 performance of 6A/2.2kW at 400V. Supplied with a built-in 1NO auxiliary contact and suitable for 35mm DIN rail or screw mounting, SKU 11BG0610A400 delivers compact versatility across control panels and machinery where dependable IEC/EN and UL/CSA compliance matters.
Engineered for demanding environments, this contactor offers Ui 690V insulation and 6kV impulse withstand, with Ith (AC1) 16A and an exceptional 20,000,000-cycle mechanical life. It operates from -50 to +70 °C up to 3000 m altitude, with pollution degree 3. Terminals tighten to 0.8–1 Nm, and the 178 g build supports neat panel layouts and dependable service.
Key Benefits
- AC-3 rated 6A/2.2kW at 400V for reliable motor switching.
- 400VAC 50/60Hz coil suits standard industrial control voltages.
- Built-in 1NO auxiliary contact simplifies signalling and interlocking.
- Dual mounting options: 35mm DIN rail or screw fixings.
- Robust insulation: Ui 690V and 6kV impulse withstand.
- Long mechanical life rated at 20,000,000 cycles.
- Wide operating temperature range from -50°C to +70°C.
Technical Specification
- Product type designation: BG06
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 16 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 178 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG06 three-pole contactor (SKU 11BG0610A400)
- Integrated 1NO auxiliary contact
- Installation instructions
- Manufacturer datasheet (digital download)
Applications
- Switching small three-phase motors up to 2.2kW at 400V (AC-3)
- Control panels requiring 3-pole contactors with 1NO auxiliary signalling
- Compact starters for fans, pumps and conveyors within AC-3 ratings
- General-purpose load control in industrial automation and OEM machinery
- DIN rail assemblies where 400VAC coils are specified
Frequently Asked Questions
What are the coil voltage and frequency?
The coil is AC 50/60Hz rated at 400VAC.
What is the AC-3 rating at 400V?
It is rated 6A with 2.2kW motor power at 400V.
Which auxiliary contacts are included?
It has one built-in NO auxiliary contact (1NO).
How can it be mounted in a panel?
It mounts on 35mm DIN rail or can be screw fixed.
Which standards does it conform to?
IEC/EN 60947-1 and 60947-4-1; UL 60947-1 and 60947-4-1; CSA C22.2 n° 60947-1 and n° 60947-4-1.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate power before wiring, tighten terminals to the specified torque, and operate within the stated ratings and environmental limits.
| Manufacturer Part Number | 11BG0610A400 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975080351 |
| Alternative Product SKU | BG0610A400 |
| Coil Voltage | 400V |
