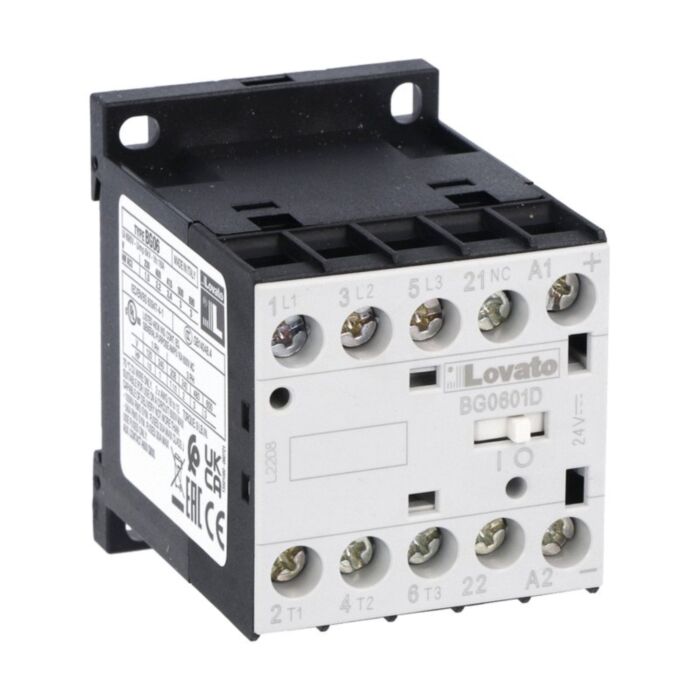

11BG0601D220 - MINICONTACTOR 3P BG06.01D 220V

Why Choose the 11BG0601D220?

Lovato’s BG06 three‑pole contactor, SKU 11BG0601D220, delivers dependable switching for motor and general loads. With a 220 V DC coil, AC‑3 performance of 6 A/2.2 kW at 400 V, and a built‑in 1NC auxiliary featuring mirror contact function, it suits safety interlocking and feedback. Screw or 35 mm DIN‑rail mounting simplifies panel integration, while Ui 690 V and Uimp 6 kV ratings support robust industrial environments.

Engineered for longevity, the BG06 platform offers 20,000,000 mechanical cycles and operates from −50 to +70 °C, with storage down to −60 °C. Rated for 3 HP at 480 V (UL/CSA) and up to 3,000 m altitude, it meets IEC/EN 60947-1 and 60947-4-1 plus UL/CSA equivalents. Pollution degree 3 construction and 0.8–1 Nm terminal torque further underpin reliable performance in demanding panels.

Key Benefits

• Dependable AC-3 switching up to 6 A/2.2 kW at 400 V.
• 220 V DC coil enables precise control in DC-supplied panels.
• Integrated 1NC auxiliary with mirror contact supports safety interlock feedback.
• Screw or 35 mm DIN rail mounting speeds clean panel installation.
• High mechanical life of 20,000,000 cycles reduces maintenance downtime.
• Wide −50 to +70 °C operating range suits harsh environments.
• Ui 690 V and Uimp 6 kV enhance insulation and surge withstand.
• Certified to IEC/EN and UL/CSA standards for global panel compliance.

Technical Specification

• Product type designation: BG06
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 16 A
• Terminal tightening torque: 0.8 to 1 Nm
• Weight: 222 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to +70 °C
• Storage temperature: -60 to +80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato 11BG0601D220 three-pole contactor
• Built-in 1NC auxiliary contact (mirror contact function)
• Installation and safety information

Applications

• Motor starters up to 2.2 kW at 400 V AC-3
• Resistive load switching up to 16 A AC-1
• Control panels requiring a 220 V DC coil contactor
• Safety interlocking and feedback using mirror contact
• Industrial automation on 35 mm DIN rail or screw mount

Safety note: Installation must be performed by qualified personnel. Isolate all supplies, observe specified torque and ratings, and follow IEC/EN 60947 and local regulations before commissioning.
