11BG0601D110 - MINICONTACTOR 3P BG06.01D 110V
MPN: 11BG0601D110
Alt. SKU: BG0601D110
Special Price
£42.72
£35.60
Regular Price
£71.21
Why Choose the 11BG0601D110?

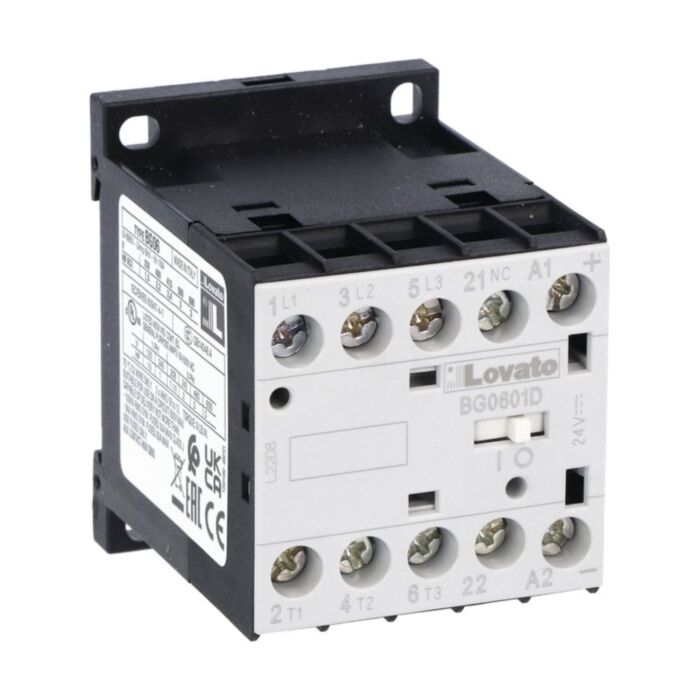

The Lovato 11BG0601D110 three-pole contactor delivers dependable switching for motors and general loads, offering 6A AC3 at 400V (2.2 kW) performance and a 110V DC coil. A built-in 1NC auxiliary with mirror contact function provides reliable status feedback for safety circuits. Flexible screw or 35 mm DIN rail mounting streamlines panel integration, with robust insulation ratings designed for durability in demanding industrial environments.
Rated Ui 690 V and Uimp 6 kV, this BG06 series device suits harsh conditions, with mechanical life to 20,000,000 cycles and operation from -50 to +70 °C. It meets IEC/EN 60947-1 and 60947-4-1, plus UL and CSA equivalents, and carries 3 HP at 480 V UL/CSA. Screw terminals accept 0.8 to 1 Nm torque, and installation is possible up to 3000 m altitude.
Key Benefits
- 6A AC3 at 400V, suitable for motors up to 2.2 kW.
- 110V DC coil for straightforward control from DC supplies.
- Built-in 1NC auxiliary with mirror function enhances safety feedback.
- Long mechanical life of 20,000,000 cycles reduces maintenance.
- Wide -50 to +70 °C operating range suits harsh environments.
- Screw or 35 mm DIN rail mounting speeds panel installation.
- High insulation ratings: Ui 690 V and Uimp 6 kV.
- Conforms to IEC/EN, UL and CSA standards for compliance.
Technical Specification
- Product type designation: BG06
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 16 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 213 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG06 three-pole contactor, 110V DC coil (SKU 11BG0601D110)
- Integrated 1NC auxiliary contact with mirror contact function
- Manufacturer datasheet (downloadable PDF)
- Protective packaging for transit
Applications
- Motor starters up to 2.2 kW at 400 V AC3
- Pumps, fans and compressors control circuits
- Heating, lighting and resistive loads up to 16 A AC1
- Industrial panels and automation on 35 mm DIN rail
- General-purpose switching where a 110 V DC coil is required
Frequently Asked Questions
What is the coil voltage and type?
It has a 110 V DC coil for control from DC supplies.
What auxiliary contact is included?
It includes a built-in 1NC auxiliary with mirror contact function.
How can this contactor be mounted?
It supports screw mounting or 35 mm DIN rail installation.
What are the main current ratings?
It is rated 6A AC3 at 400 V (2.2 kW) and 16 A AC1.
Which standards does it conform to?
It conforms to IEC/EN 60947-1 and 60947-4-1, UL and CSA equivalents.
Safety note: Install and commission only by qualified personnel. Isolate power before work, observe terminal torque (0.8–1 Nm), and ensure ratings and standards are respected for the application.
| Manufacturer Part Number | 11BG0601D110 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975082546 |
| Alternative Product SKU | BG0601D110 |
| Coil Voltage | 110V |
