11BG0601D048 - MINICONTACTOR 3P BG06.01D 48V
MPN: 11BG0601D048
Alt. SKU: BG0601D048
Special Price
£42.72
£35.60
Regular Price
£71.21
Why Choose the 11BG0601D048?

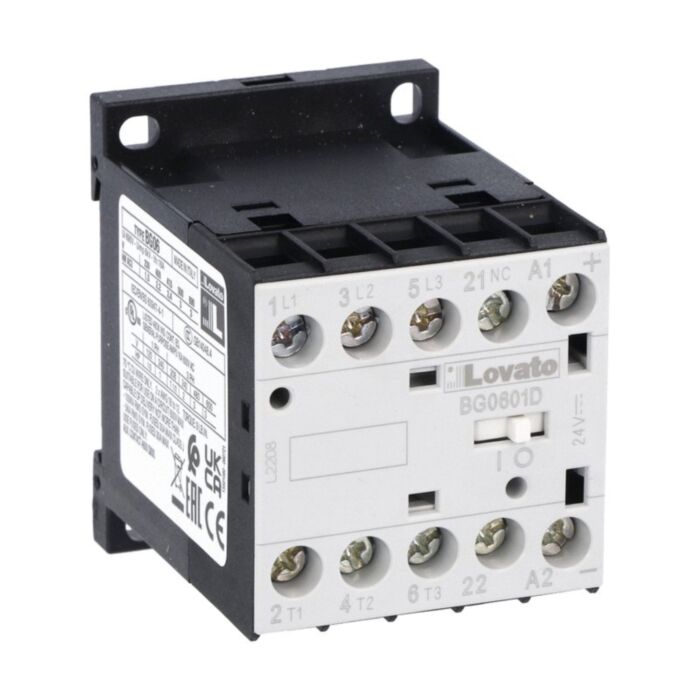

Lovato 11BG0601D048 is a compact three-pole contactor designed for dependable motor switching and control. With a 48 V DC coil and AC-3 rating of 6 A (2.2 kW at 400 V), it suits small motors and general automation tasks. The built-in 1NC auxiliary features a mirror contact function for reliable interlocking and feedback. Screw or 35 mm DIN rail mounting streamlines panel integration and maintenance.
Engineered for longevity and harsh conditions, the BG06 platform delivers 20,000,000 mechanical operations and operates from -50 to +70 °C. Robust insulation (Ui 690 V, Uimp 6 kV) and Ith 16 A support demanding circuits, while suitability up to 3000 m and pollution degree 3 enhance reliability. Conformance to IEC/EN 60947-1/-4-1 and UL/CSA equivalents streamlines specification across global projects.
Key Benefits
- AC-3 rated 6 A, 2.2 kW at 400 V for small motors
- 48 V DC coil delivers precise control and stable operation
- Integrated 1NC auxiliary with mirror contact function for interlocks
- Wide -50 to +70 °C operating range for harsh environments
- Screw or 35 mm DIN rail mounting speeds installation
- High mechanical life of 20,000,000 cycles reduces downtime
- Robust ratings: Ui 690 V, Uimp 6 kV, Ith 16 A
Technical Specification
- Product type designation: BG06
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 16 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 230 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG06 three-pole contactor, 48 V DC coil (SKU: 11BG0601D048)
- Integrated 1NC auxiliary contact with mirror contact function
- Installation leaflet and safety information
Applications
- Starting and stopping AC motors up to 6 A AC-3 at 400 V
- Control of pumps, fans, and conveyors in automation panels
- Switching resistive loads up to 16 A AC-1 where applicable
- OEM machinery and control cabinets requiring DC coil actuation
Frequently Asked Questions
What is the coil voltage for this contactor?
The coil is DC rated at 48 V.
Can it be DIN rail mounted?
Yes, it mounts on 35 mm DIN rail or by screws.
What auxiliary contact is included?
It includes a built-in 1NC auxiliary with mirror contact function.
What operating temperature range does it support?
The operating range is -50 to +70 °C.
Which standards does it comply with?
It conforms to IEC/EN 60947-1/-4-1 and UL/CSA equivalents.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate all power sources before work, follow applicable standards, and observe the stated electrical and environmental ratings.
| Manufacturer Part Number | 11BG0601D048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975082522 |
| Alternative Product SKU | BG0601D048 |
| Coil Voltage | 48V |
