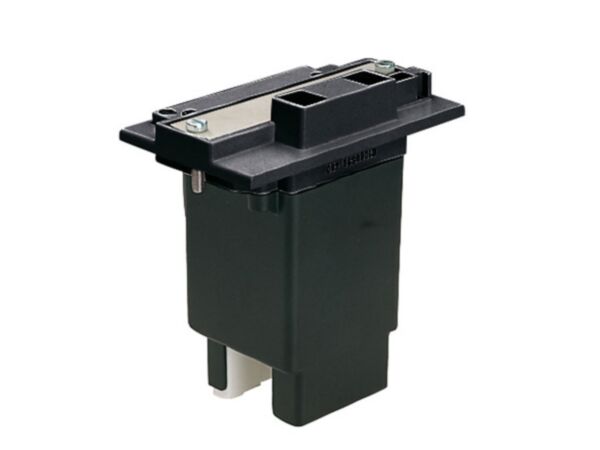

11BA1796440 - COIL ASSEMBLY BA1796 440/480V

Why Choose the Lovato 11BA1796440 AC/DC Coil Assembly?

The Lovato 11BA1796440 is a genuine AC/DC coil assembly designed specifically for selected Lovato B500, B630, B6301000, B1250 and B1600 contactors. Engineered for demanding industrial motor control systems, this complete assembly includes the coil, rectifier and coil protection circuitry, helping deliver reliable and stable contactor operation in heavy-duty industrial applications.

Manufactured by Lovato Electric as an original industrial spare part, the 11BA1796440 is designed to maintain compatibility, operational safety and dependable switching performance within large industrial contactor systems. The integrated coil assembly design simplifies maintenance and replacement procedures while helping reduce downtime in industrial automation environments.

Designed for 440–480 V AC/DC control circuits, this coil assembly is suitable for maintenance, refurbishment and OEM servicing of compatible Lovato B-series contactors used in industrial automation, power distribution and heavy-duty switching applications. Genuine Lovato spare parts help maintain safe operation and reliable performance within approved industrial installations.

Key Advantages

• Original Lovato Electric AC/DC coil assembly.
• Includes coil, rectifier and coil protection.
• 440–480 V AC/DC rated operation.
• Designed for B500 to B1600 contactors.
• Reliable replacement solution for industrial maintenance.
• Industrial-grade electrical construction for demanding environments.

Key Features

• Lovato BA1796 coil assembly.
• 440–480 V AC/DC coil voltage.
• Integrated rectifier and coil protection.
• Compatible with Lovato B500, B630, B6301000, B1250 and B1600 contactors.
• Factory-engineered industrial spare part.
• Designed for heavy-duty motor control systems.
• Suitable for OEM and maintenance applications.
• Designed for reliable long-term industrial operation.

Technical Specifications

• Manufacturer: Lovato Electric
• Series: BA1796 Contactors Spare Parts
• Model: 11BA1796440
• Product type: AC/DC coil assembly
• Type of coil: AC/DC coil
• Rated coil voltage: 440–480 V AC/DC
• Type of spare part: Coil assembly
• Integrated components: Coil, rectifier and coil protection
• Compatible contactors: 11B500, 11B630, 11B6301000, 11B1250, 11B1600 series
• Application: Industrial contactor maintenance and replacement
• Mounting application: Industrial contactor assembly
• Weight: approx. 4950 g
• Package dimensions: approx. 147 × 202 × 230 mm
• Volume: approx. 7141.888 cm³
• EAN: 8013975020081
• HS code: 85389099

Reliable Coil Replacement for Heavy-Duty Industrial Contactors

Industrial AC/DC coil assemblies such as the Lovato 11BA1796440 are essential components within heavy-duty motor control and switching systems. The assembly energises the contactor mechanism while integrated rectifier and protection circuitry help maintain stable operation and improve electrical reliability.

Using genuine Lovato replacement assemblies helps maintain electrical compatibility, operational reliability and safe performance within industrial installations. The 11BA1796440 is particularly suitable for industrial automation panels, switchgear systems and OEM machinery requiring dependable contactor maintenance and servicing.

Typical Applications

• Industrial motor control systems.
• Maintenance of Lovato B-series heavy-duty contactors.
• Industrial automation panels.
• Power distribution and switchgear systems.
• Heavy industrial switching applications.
• OEM machinery maintenance and servicing.

Trusted by Industrial Maintenance Engineers Worldwide

Lovato genuine spare parts are trusted by industrial engineers and maintenance professionals to ensure reliable operation and long-term performance of industrial motor control systems.
