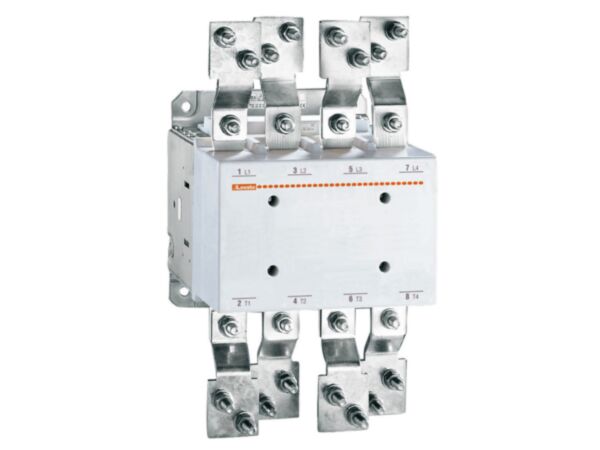

11B630100040060 - 4P CONTACTOR B630/1000.4.00 60V
MPN: 11B630100040060
Alt. SKU: B630100040060
Special Price
£5,448.76
£4,540.63
Regular Price
£9,081.25
Why Choose the 11B630100040060?
The Lovato B6301000 four‑pole contactor is engineered for high‑capacity switching and control. With a 60 V AC/DC coil and an IEC AC‑1 operating current (Ith) of 1000 A, it delivers dependable performance in demanding panels. For motor duty, it achieves 630 A / 355 kW at 400 V (AC‑3). Screw mounting simplifies installation in control cabinets and power distribution assemblies.
Designed to IEC/EN 60947 and recognised to UL/CSA equivalents, this contactor offers robust insulation ratings of Ui 1000 V and Uimp 8 kV. A mechanical life of 5,000,000 cycles, wide –50 to +70 °C operating range, pollution degree 3, and suitability up to 3000 m altitude ensure reliability across industrial automation, process equipment, and heavy‑duty power applications.
Key Benefits
- Four-pole high-capacity switching for AC-1 and AC-3 duties.
- 60 V AC/DC coil for flexible control supply options.
- 1000 A Ith (AC1) rating handles heavy resistive loads.
- 630 A / 355 kW at 400 V for large motors.
- Ui 1000 V and 8 kV Uimp provide insulation robustness.
- Screw mounting enables secure, straightforward panel installation.
- Operates from –50 to +70 °C for harsh environments.
- Mechanical life up to 5,000,000 cycles for long service.
Technical Specification
- Product type designation: B6301000
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 1000 V
- Rated impulse withstand voltage Uimp: 8 kV
- Ith (IEC): 1000 A
- Terminal tightening torque: 55 to 55 Nm
- Weight: 26 g
- Mechanical life: 5000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato B6301000 four-pole contactor, 60 V AC/DC coil (SKU 11B630100040060)
- Manufacturer documentation and datasheet (downloadable)
- Packaging for safe transport
Applications
- High-current AC-1 resistive load switching up to 1000 A Ith.
- Large motor control at 400 V AC-3 (630 A / 355 kW).
- Industrial power distribution and heavy-duty control panels.
- Process automation, manufacturing lines, and utilities infrastructure.
Frequently Asked Questions
What coil type and voltage does this contactor use?
It uses a 60 V AC/DC coil, suitable for either AC or DC control supplies.
What are the main current and power ratings?
Ith (AC1) is 1000 A, and at 400 V in AC-3 it is 630 A / 355 kW.
Which standards and approvals does it meet?
It conforms to IEC/EN 60947-1 and 60947-4-1, and is recognised to UL and CSA equivalents.
What environmental conditions can it operate in?
Operating range is –50 to +70 °C, up to 3000 m altitude, pollution degree 3.
How is it mounted and what is the terminal torque?
It mounts by screws, with a terminal tightening torque of 55 Nm.
Safety note: Installation and maintenance must be performed by qualified personnel. Always isolate power, follow IEC/EN 60947 practices and local regulations, and verify correct coil voltage before energising.
| Manufacturer Part Number | 11B630100040060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975093757 |
| Alternative Product SKU | B630100040060 |
