11B6301000400380 - 4P CONTACOR B630/1000.4.00 380/415V
MPN: 11B6301000400380
Alt. SKU: B6301000400380
Special Price
£5,448.76
£4,540.63
Regular Price
£9,081.25
Why Choose the 11B6301000400380?

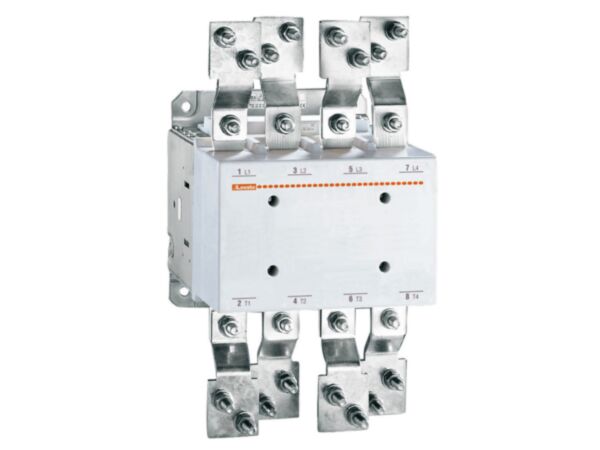

The Lovato four‑pole contactor (product designation B6301000) delivers high‑capacity switching for demanding industrial panels. With an IEC operating current Ith (AC1) of 1000 A and AC3 performance at 400 V of 630 A / 355 kW, it handles heavy resistive and motor loads with confidence. An AC/DC coil rated 380…415 V simplifies spares and control wiring, while screw mounting speeds secure, compliant installation.
Built for reliability, this contactor offers Ui 1000 V, Uimp 8 kV and a mechanical life of 5,000,000 cycles. It operates from −50 to 70 °C, stores from −60 to 80 °C, and is suitable up to 3000 m altitude (pollution degree 3). Conformity to IEC/EN 60947‑1/‑4‑1, UL and CSA standards supports acceptance in global projects and rigorous UK specifications.
Key Benefits
- 1000 A Ith (AC1) rating for robust high-current switching.
- 630 A / 355 kW AC3 performance at 400 V for large motors.
- AC/DC coil 380…415 V streamlines control design and spares.
- Four-pole configuration enhances flexibility for multi-phase circuits.
- Tested mechanical life of 5,000,000 cycles for long service.
- High insulation: Ui 1000 V and Uimp 8 kV withstand surges.
- Reliable operation from −50 to 70 °C, up to 3000 m altitude.
- Screw mounting enables fast, secure panel installation.
Technical Specification
- Product type designation: B6301000
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 1000 V
- Rated impulse withstand voltage Uimp: 8 kV
- Ith (IEC): 1000 A
- Terminal tightening torque: 55 to 55 Nm
- Weight: 26 g
- Mechanical life: 5000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato B6301000 four-pole contactor, ordering code 11B6301000400380.
- Integrated 380…415 VAC/DC coil assembly.
- Screw terminal connections ready for panel mounting.
- Manufacturer product datasheet (downloadable).
Applications
- High-current resistive load switching (AC1 up to 1000 A).
- Large motor control at 400 V (AC3 630 A / 355 kW).
- Multi-pole isolation in industrial power distribution.
- Control panels requiring IEC/EN 60947 and UL/CSA compliance.
- Installations operating between −50 and 70 °C or up to 3000 m.
Frequently Asked Questions
What coil voltage does this contactor use?
It has an AC/DC coil rated 380…415 V.
What are the main current and power ratings?
Ith (AC1) is 1000 A; at 400 V AC3 it's 630 A / 355 kW.
How is it mounted and connected?
It is screw mounted with screw terminals; terminal tightening torque is 55 Nm.
What environmental limits apply?
Operating temperature −50 to 70 °C, storage −60 to 80 °C, altitude up to 3000 m, pollution degree 3.
Which standards does it conform to?
IEC/EN 60947-1 and 60947-4-1, UL 60947-1/-4-1, and CSA C22.2 60947-1/-4-1.
Safety note: Installation and commissioning must be performed by qualified personnel. Isolate power before work, apply the specified terminal torque, and ensure operation within the stated electrical and environmental ratings and standards.
| Manufacturer Part Number | 11B6301000400380 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975053126 |
| Alternative Product SKU | B6301000400380 |
