11B63010000060 - 3P CONTACTOR B630/1000.00 60V IN AC1

Why Choose the 11B63010000060?

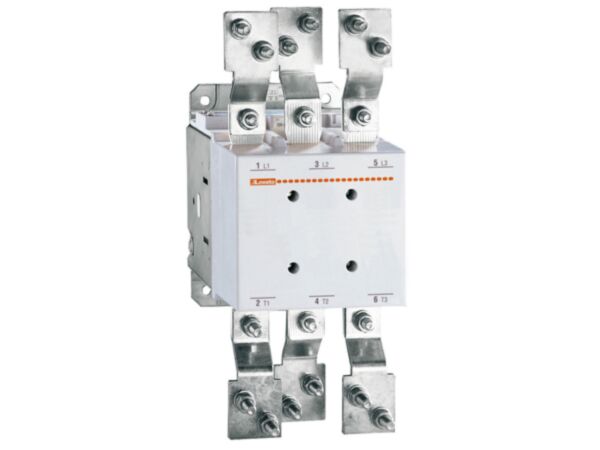

Engineered for heavy-duty power switching, the Lovato three-pole contactor (SKU 11B63010000060) delivers robust performance with a 60 VAC/DC coil and an IEC operating current Ith (AC1) of 1000 A. It features a rated insulation voltage Ui of 1000 V and an 8 kV impulse withstand rating, making it a dependable choice for high-capacity circuits. Screw mounting simplifies secure installation in industrial panels.

Built to last, the B6301000 contactor offers 5,000,000 mechanical cycles and reliable operation from -50 to 70°C, with storage to -60 to 80°C and use up to 3000 m altitude. Rated Pollution Degree 3 with a terminal tightening torque of 55 Nm, it meets IEC/EN 60947-1/-4-1, UL and CSA standards, supporting safe integration in globally compliant control equipment.

Key Benefits

• 1000 A AC1 Ith for high-capacity resistive load switching.
• 60 VAC/DC universal coil simplifies control supply selection.
• High dielectric strength: Ui 1000 V and Uimp 8 kV.
• Wide operating temperature range, -50 to 70°C.
• Long mechanical life rated at 5,000,000 cycles.
• Screw mounting and terminals for secure panel installation.
• Suitable up to 3000 m altitude, Pollution Degree 3.
• Compliance with IEC/EN, UL and CSA standards.

Technical Specification

• Product type designation: B6301000
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Ith (IEC): 1000 A
• Terminal tightening torque: 55 to 55 Nm
• Weight: 2120 g
• Mechanical life: 5000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato B6301000 three-pole contactor, 60 VAC/DC coil
• Manufacturer datasheet and documentation
• Protective packaging for transit

Applications

• High-current AC1 resistive load switching up to 1000 A
• Power distribution switching and isolation in industrial panels
• Resistive heating circuits requiring high insulation performance
• Installations in harsh temperatures or at altitudes up to 3000 m
• Panels built to IEC/EN, UL and CSA requirements

Safety note: Install and commission only by qualified personnel per applicable standards. Isolate power before work and observe the specified voltage, current, torque and environmental ratings for safe operation.
