11B630100000380 - 3P CONTACTOR B630/1000 380/415

Why Choose the 11B630100000380?

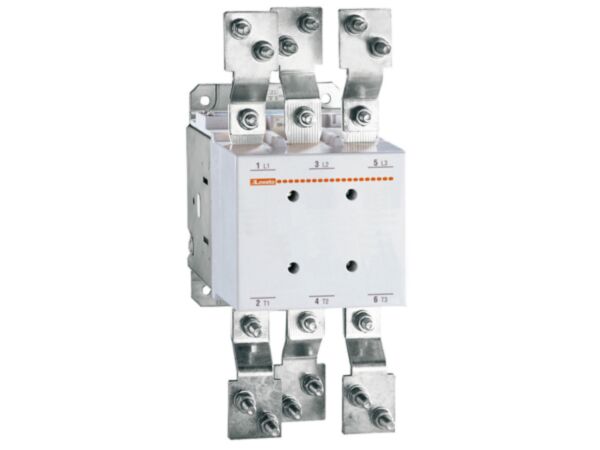

Lovato’s B6301000 three-pole contactor (SKU 11B630100000380) delivers dependable AC-1 switching at 1000 A with an AC/DC coil rated 380...415 VAC/DC. Designed for screw mounting, it features a rated insulation voltage of 1000 V and 8 kV impulse withstand. Built for industrial control panels requiring compliance to IEC/EN 60947-1 and 60947-4-1, it also carries UL and CSA conformity.

Engineered for longevity and harsh conditions, it provides a mechanical life of 5,000,000 cycles and operates from -50 to +70 °C (storage -60 to +80 °C). Rated Pollution Degree 3 and suitable for installation up to 3000 m, it ensures secure terminations with 55 Nm terminal torque. Weight 2154 g.

Key Benefits

• 1000 A AC-1 operating current for heavy-duty resistive load switching.
• AC/DC coil rated 380...415 VAC/DC simplifies control integration across common supplies.
• Three-pole design supports reliable three-phase circuit control.
• Rated insulation voltage 1000 V and 8 kV impulse withstand enhance dielectric strength.
• Wide operating temperature -50 to +70 °C for reliable performance in harsh environments.
• Mechanical life of 5,000,000 cycles helps reduce maintenance and downtime.
• Screw mounting and 55 Nm terminal torque ensure secure, durable connections.
• Compliance with IEC/EN, UL, and CSA standards eases specification and approval.

Technical Specification

• Product type designation: B6301000
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Ith (IEC): 1000 A
• Terminal tightening torque: 55 to 55 Nm
• Weight: 2154 g
• Mechanical life: 5000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato B6301000 three-pole contactor, SKU 11B630100000380
• 380...415 VAC/DC coil
• Manufacturer documentation and downloadable datasheet
• Standard protective packaging

Applications

• Switching of AC-1 rated resistive loads up to 1000 A
• Three-phase power switching tasks in industrial control panels
• Installations requiring IEC/EN, UL, and CSA compliant components
• Environments with wide temperature swings or elevated altitudes up to 3000 m
• Projects specifying Pollution Degree 3 rated equipment

Safety note: Installation and servicing must be performed by qualified personnel. De-energise circuits before work, apply the specified 55 Nm terminal torque, and follow IEC/EN 60947 and local regulations.
