11B630100000110 - 3P CONTACTOR B630/1000.00 110- 125V

Why Choose the 11B630100000110?

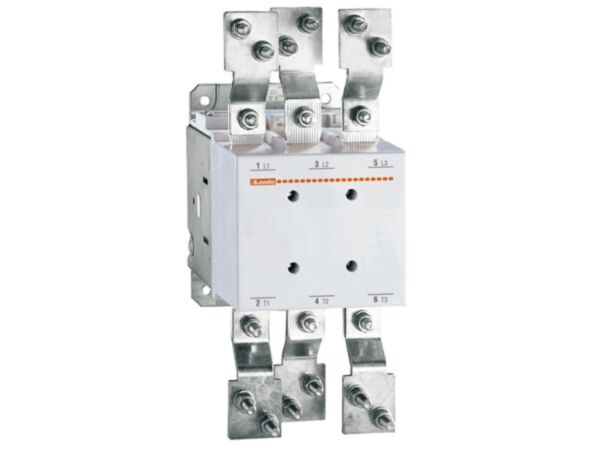

Engineered for demanding power circuits, the Lovato three‑pole contactor B6301000 delivers a formidable IEC operating current Ith (AC1) of 1000 A. Its universal 110–125 VAC/DC coil simplifies control wiring across varied panels, while robust screw mounting ensures a secure install. With Ui rated to 1000 V and an 8 kV impulse withstand, it provides reliable isolation and switching performance in heavy‑duty applications.

Designed for endurance, this contactor offers a mechanical life of 5,000,000 cycles and operates from −50 to 70 °C, up to 3000 m altitude. At just 2140 g, it balances strength and manageable size. Conformity with IEC/EN 60947‑1/‑4‑1, UL and CSA standards supports global panel compliance, and Pollution Degree 3 suitability enhances resilience in industrial environments. Backed by Lovato’s sustainability certification for responsible manufacturing.

Key Benefits

• 1000 A AC1 Ith handles demanding power switching duties.
• 110–125 VAC/DC coil enables flexible control across systems.
• Ui 1000 V and 8 kV Uimp for robust insulation.
• Operates from −50 to 70 °C for harsh environments.
• Mechanical life 5,000,000 cycles minimises downtime and replacement.
• Screw mounting; 55 Nm terminal torque ensures secure connections.
• Complies with IEC/EN, UL, and CSA standards for assurance.
• Suitable for installations up to 3000 m altitude.

Technical Specification

• Product type designation: B6301000
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Ith (IEC): 1000 A
• Terminal tightening torque: 55 to 55 Nm
• Weight: 2140 g
• Mechanical life: 5000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato B6301000 three-pole contactor (SKU 11B630100000110)
• Downloadable manufacturer data sheet
• Installation and safety information
• Original manufacturer packaging

Applications

• Heavy‑duty motor starters and power feeders
• Industrial automation panels and MCCs
• Pumps, compressors, and conveyors
• HVAC and building services control
• Renewable and energy storage switchgear

Safety note: Installation and maintenance must be performed by qualified personnel. Isolate power before work, observe the specified terminal torque, and operate within the stated ratings and environmental limits.
