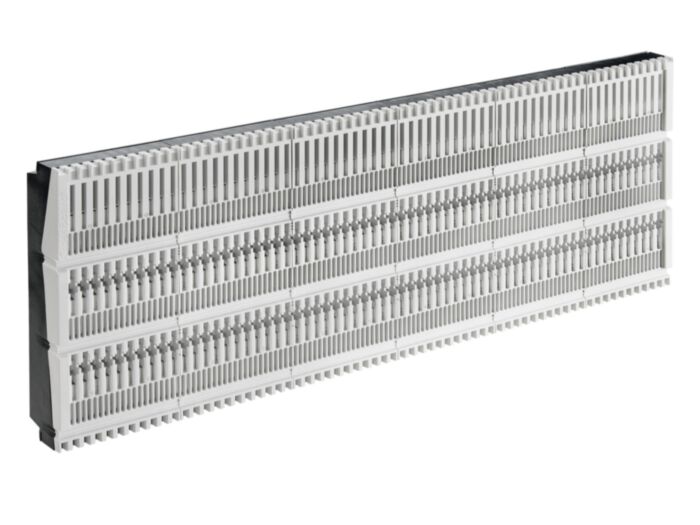

11809000A Woehner 3 pole 800A Basic System
MPN: 11809
Alt. SKU: 11809000A
Special Price
£498.76
£415.63
Regular Price
£623.45
Why Choose the Wöhner 11809 Busbar Support?
The Wöhner 11809 is a heavy-duty busbar support block designed for secure mechanical mounting and reliable electrical insulation of flat copper busbars within industrial switchgear and distribution assemblies. It ensures stable positioning while maintaining required creepage and clearance distances for compliant panel construction.
Manufactured from robust, halogen-free insulating material, the 11809 is engineered for dependable performance in IEC 61439 and UL-compliant installations. It provides long-term structural stability in high-current distribution boards and OEM control cabinets.
Key Features
- Heavy-duty busbar support block for flat copper busbars.
- Provides secure mechanical fixing and electrical insulation.
- Maintains required creepage and clearance distances.
- Designed for industrial switchgear assemblies.
- Halogen-free insulating compound for enhanced fire safety.
- Suitable for IEC and UL-compliant panel builds.
Technical Specifications
- Manufacturer: Wöhner
- Model: 11809
- MPN: 11809000A
- Product type: Busbar support
- Application: Flat copper busbars
- Function: Mechanical fixing and insulation support
- Material: Halogen-free insulating compound
- Compliance: Suitable for IEC 61439 and UL assemblies
- EAN: 4021267118096
Typical Applications
- Supporting flat copper busbars in industrial distribution panels.
- Maintaining structural alignment in high-current switchboards.
- Providing insulation support within IEC 61439 assemblies.
- OEM control cabinets requiring modular busbar mounting.
Frequently Asked Questions
What is the Wöhner 11809 used for?
The 11809 is a busbar support used to mechanically secure and insulate flat copper busbars within distribution panels.
Does this component carry electrical current?
No. It functions as a mechanical and insulating support and does not conduct current.
Is it suitable for IEC and UL panel builds?
Yes. It is suitable for installations built to IEC and UL standards when used within compliant assemblies.
What type of busbars is it designed for?
It is designed for flat copper busbars used in industrial power distribution systems.
Where can I find installation documentation?
Technical documentation and installation guidance are available from the manufacturer’s official product resources.
| Manufacturer Part Number | 11809 |
|---|---|
| Barcode | 4021267118099 |
| Height | 200mm |
| Width | 200mm |
| Depth | 45mm |
| Country of Manufacture | Germany |
| HS Code | 85369095 |
| Alternative Product SKU | 11809000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Range | Crossboard |
| Material | Copper |
| Number of Poles | 3 pole |
| Halogen free | Yes |
| Rated voltage | 800V |
| Rated current | 800A |
| Max. rated operation current Ie | 800A |
| Rated voltage AC | 600V |
| Rated surge voltage | 6kV |
| Rated Frequency | 50Hz/60Hz |
| Rated Isolation Voltage Ui AC | 1000V |
| Max. peak current | 80kA |
| Rated short-time withstand current lcw | 30kA |
| max. permitted voltage (IEC) DC | 1000V |
| Short-Circuit Current Rating (SCCR) | 65 kA with any DIVQ/7 circuit breaker 800 A / 480 V AC |
