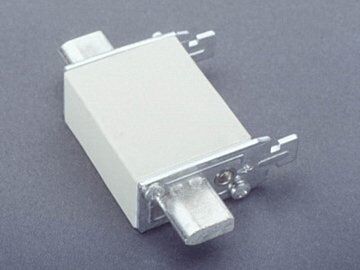

03919 Wohner NH fuse 100 A
MPN: 03919
Alt. SKU: 03919000A
Special Price
£27.61
£23.01
Regular Price
£34.52
Why Choose the NH Fuse 100 A (03919)?
The NH fuse 100 A (Part No.: 03919 000A) is a reliable mechanical fuse designed for industrial applications requiring high-performance protection. With a voltage rating of 690 V and a gG operation class, this size 00 fuse is crafted from durable porcelain material that is halogen free, ensuring safety and environmental compliance. Its robust construction makes it an excellent choice for safeguarding electrical systems against overloads and short circuits.
Key Benefits
- Mechanical product that does not carry current, ensuring safe operation and easy maintenance.
- High voltage rating of 690 V suitable for various industrial applications.
- gG operation class providing comprehensive protection against overloads and short circuits.
- Made from halogen-free porcelain, promoting environmental safety and reducing toxic emissions.
- Compact size 00 design for easy integration into existing fuse systems.
- Lightweight at 20.0 kg per 100 units, facilitating handling and installation.
Technical Specifications
- Item number: 03919
- Description: NH fuse 100 A
- Weight: 20.0 kg/100
- Material: Porcelain
- Halogen free: Yes
Frequently Asked Questions
Is this fuse suitable for high voltage applications?
Yes, the NH fuse 100 A is rated for 690 V, making it suitable for high voltage industrial applications.
Does this fuse carry current?
No, as a mechanical fuse, it does not carry current but acts as a protective device in the circuit.
What material is the fuse made from?
The fuse is made from porcelain, which is halogen free and environmentally friendly.
What does the gG operation class mean?
The gG operation class indicates that the fuse provides full-range protection against overloads and short circuits.
| Manufacturer Part Number | 03919 |
|---|---|
| Barcode | 4021267039196 |
| Width | 40mm |
| Country of Manufacture | Hungary |
| HS Code | 85361090 |
| Alternative Product SKU | 03919000A |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Rated current | 100A |
| Utilization category according to IEC 60269 | gL/gG (cable protection/equipment protection) |
| Rated switching capacity | 80kA |
| Rated voltage AC | 690V |
| Rated voltage DC | 250VDC |
| Power loss at rated current | 7.5W |
| Fuse construction type according to IEC 60269 | NH00 |
| Type of fuse status indicator | Combination fuse status indicator |
