03917 Wohner NH fuse 63 A
MPN: 03917
Alt. SKU: 03917000A
Special Price
£25.20
£21.00
Regular Price
£31.49
Why Choose NH Fuse 63 A (03917)

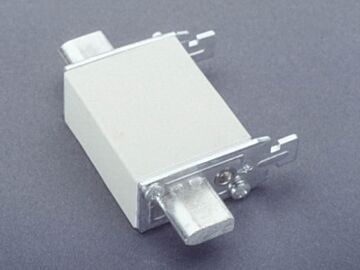

The NH fuse 63 A (Part No.: 03917 000A) is a reliable mechanical fuse designed for industrial applications requiring robust overcurrent protection. Rated for 690 V and classified as gG with size 00, this fuse is made from high-quality porcelain material, ensuring durability and safety. Being halogen free, it supports environmentally conscious installations. As a mechanical product, it does not carry current itself but serves as a critical safety component in electrical systems.
Key Benefits
- High-quality porcelain construction for enhanced durability and insulation.
- Halogen-free design supports safer and environmentally friendly installations.
- Classified as gG, suitable for general purpose protection against overload and short circuit.
- Size 00 for compatibility with a range of NH fuse holders and systems.
- Mechanical fuse that ensures reliable disconnection without carrying current.
Technical Specifications
- Item number: 03917
- Description: NH fuse 63 A
- Weight: 20.0 kg/100
- Material: Porcelain
- Halogen free: Yes
Frequently Asked Questions
What is the voltage rating of this NH fuse?
The NH fuse 63 A is rated for 690 V, suitable for a wide range of industrial electrical systems.
Is this fuse suitable for DC applications?
This fuse is primarily designed for AC applications; please consult technical documentation for DC suitability.
Does this fuse carry current?
No, as a mechanical fuse, it does not carry current but acts as a protective device to interrupt current flow in fault conditions.
Is the fuse environmentally friendly?
Yes, it is halogen free, making it a safer choice for the environment.
Where can I find technical data and CAD files?
Technical information and CAD data are available through the provided download links and manufacturer resources.
| Manufacturer Part Number | 03917 |
|---|---|
| Barcode | 4021267039172 |
| Width | 40mm |
| Country of Manufacture | Hungary |
| HS Code | 85361050 |
| Alternative Product SKU | 03917000A |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Rated current | 63A |
| Utilization category according to IEC 60269 | gL/gG (cable protection/equipment protection) |
| Rated switching capacity | 80kA |
| Rated voltage AC | 690V |
| Rated voltage DC | 250VDC |
| Power loss at rated current | 5.6W |
| Fuse construction type according to IEC 60269 | NH00 |
| Type of fuse status indicator | Combination fuse status indicator |
