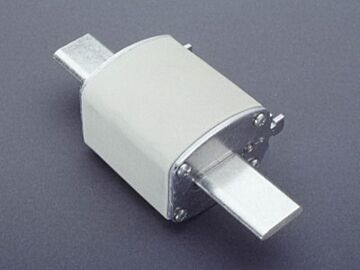

03573 Wohner NH fuse 315 A
MPN: 03573
Alt. SKU: 03573000A
Special Price
£29.48
£24.57
Regular Price
£36.85
Why Choose NH Fuse 315 A (03573)
The NH fuse 315 A (Part No. 03573) is a high-quality mechanical fuse designed for reliable protection in electrical installations. Manufactured with durable porcelain and halogen-free materials, it ensures safety and environmental compliance. Its size 2 classification and 500 V rating make it suitable for a wide range of industrial applications. As a mechanical product, it does not carry current but provides essential circuit protection by breaking the circuit under fault conditions.
Key Benefits
- Robust porcelain construction for enhanced durability and insulation
- Halogen-free materials for environmentally friendly usage
- Rated for 315 A current and 500 V voltage, suitable for various industrial circuits
- Size 2 fuse for standardised fitting and compatibility
- Mechanical design ensures safe disconnection without carrying current
Technical Specifications
- Item number: 03573
- Description: NH fuse 315 A
- Weight: 64.0 kg/100
- Material: Porcelain
- Halogen free: Yes
Frequently Asked Questions
What is the primary function of the NH fuse 315 A?
The NH fuse 315 A is designed to protect electrical circuits by interrupting excessive current flow, preventing damage to equipment and reducing fire risk.
Is this fuse suitable for high voltage applications?
This fuse is rated for 500 V, making it suitable for many industrial low to medium voltage applications but not for high voltage systems beyond this rating.
Does the NH fuse 315 A carry current during normal operation?
No, as a mechanical fuse, it does not carry current but acts as a protective device that interrupts current flow when necessary.
Is the fuse environmentally friendly?
Yes, it is made from halogen-free materials, ensuring reduced environmental impact.
Where can I find technical documentation and CAD data?
Technical information, data packets, characteristics, and CAD files are available through the provided download links.
| Manufacturer Part Number | 03573 |
|---|---|
| Barcode | 4021267035730 |
| Width | 40mm |
| Country of Manufacture | Hungary |
| HS Code | 85361090 |
| Alternative Product SKU | 03573000A |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Rated current | 315A |
| Utilization category according to IEC 60269 | gL/gG (cable protection/equipment protection) |
| Rated switching capacity | 120kA |
| Rated voltage AC | 500V |
| Rated voltage DC | 250VDC |
| Power loss at rated current | 25W |
| Fuse construction type according to IEC 60269 | NH2 |
| Type of fuse status indicator | Combination fuse status indicator |
