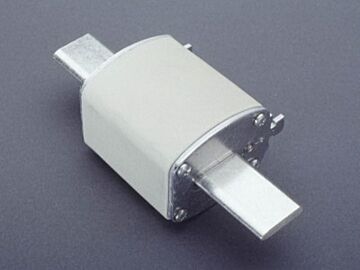

03570 Wohner NH fuse 224 A
MPN: 03570
Alt. SKU: 03570000A
Special Price
£24.67
£20.56
Regular Price
£30.83
Why Choose NH Fuse 224 A (03570)?
The NH fuse 224 A (Part No.: 03570 000A) is a reliable and robust mechanical fuse designed for high-performance electrical protection. Manufactured with high-quality porcelain, this size 2 fuse is halogen free, ensuring environmental safety and compliance with modern standards. Its gG operation class makes it suitable for general purpose protection in electrical circuits up to 500 V.
Key Benefits
- Mechanical product that does not carry current, ensuring safe operation and easy maintenance.
- High durability porcelain material provides excellent insulation and mechanical strength.
- Halogen free construction supports eco-friendly installations.
- Compatible with NH 2 fuse holders and links for seamless integration.
- Rated for 224 A with a gG operation class, suitable for a wide range of industrial applications.
Technical Specifications
- Item number: 03570
- Description: NH fuse 224 A
- Weight: 42.0 kg/100
- Material: Porcelain
- Halogen free: Yes
Frequently Asked Questions
Is this fuse suitable for high voltage applications?
The NH fuse 224 A is rated for use up to 500 V, making it suitable for many industrial electrical systems.
Does this fuse carry current?
No, this is a mechanical fuse and does not carry current itself. It is designed to protect electrical circuits by breaking the circuit when necessary.
Is the fuse environmentally safe?
Yes, it is halogen free, which reduces environmental impact and supports safer disposal.
Where can I find technical documentation?
Technical information and data sheets are available via the provided download links.
| Manufacturer Part Number | 03570 |
|---|---|
| Barcode | 4021267035709 |
| Width | 40mm |
| Country of Manufacture | Hungary |
| HS Code | 85361090 |
| Alternative Product SKU | 03570000A |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Rated current | 224A |
| Utilization category according to IEC 60269 | gL/gG (cable protection/equipment protection) |
| Rated switching capacity | 120kA |
| Rated voltage AC | 500V |
| Rated voltage DC | 250VDC |
| Power loss at rated current | 19.2W |
| Fuse construction type according to IEC 60269 | NH2 |
| Type of fuse status indicator | Combination fuse status indicator |
