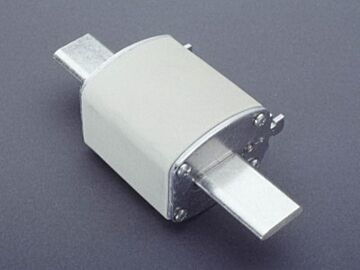

03566 Wohner NH fuse 100 A
MPN: 03566
Alt. SKU: 03566000A
Special Price
£20.51
£17.09
Regular Price
£25.63
Why Choose NH Fuse 100 A (03566)?
The NH fuse 100 A (03566) is a reliable mechanical fuse designed for industrial electrical protection. Its porcelain construction ensures durability and safety, while being halogen-free supports environmentally conscious installations. This fuse is suitable for use in systems requiring a 500 V rating and size 2 classification, providing effective protection without carrying current itself.
Key Benefits
- Robust porcelain material for enhanced durability and safety.
- Halogen-free design promotes eco-friendly applications.
- Rated for 100 A current and 500 V voltage, suitable for various industrial uses.
- Size 2 NH fuse classification ensures compatibility with standard fuse holders.
- Mechanical product that does not carry current, providing reliable circuit protection.
Technical Specifications
- Item number: 03566
- Description: NH fuse 100 A
- Weight: 42.0 kg/100
- Material: Porcelain
- Halogen free: Yes
Frequently Asked Questions
What is the voltage rating of this NH fuse?
The NH fuse 100 A (03566) is rated for 500 V.
Is this fuse suitable for high-current applications?
This fuse is rated for 100 A, making it suitable for many industrial protection needs within this current range.
Does this fuse carry current?
No, as a mechanical fuse, it does not carry current but acts as a protective device to interrupt the circuit when necessary.
Is the fuse environmentally friendly?
Yes, it is halogen-free, supporting environmentally responsible installations.
| Manufacturer Part Number | 03566 |
|---|---|
| Barcode | 4021267035662 |
| Width | 40mm |
| Country of Manufacture | Hungary |
| HS Code | 85361090 |
| Alternative Product SKU | 03566000A |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Rated current | 100A |
| Utilization category according to IEC 60269 | gL/gG (cable protection/equipment protection) |
| Rated switching capacity | 120kA |
| Rated voltage AC | 500V |
| Rated voltage DC | 250VDC |
| Power loss at rated current | 10.7W |
| Fuse construction type according to IEC 60269 | NH2 |
| Type of fuse status indicator | Combination fuse status indicator |
