03535 Wohner NH fuse 32 A
MPN: 03535
Alt. SKU: 03535000A
Special Price
£7.32
£6.10
Regular Price
£9.14
Why Choose NH Fuse 32 A (03535)?

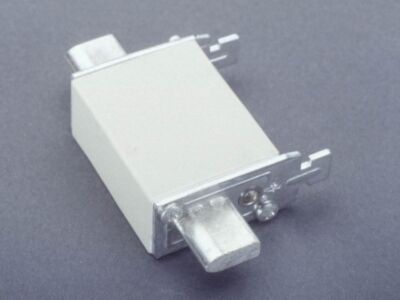

The NH fuse 32 A (Part No. 03535 000A) is a reliable and essential component for protecting electrical circuits. Designed with a porcelain body and halogen-free materials, it ensures safety and environmental compliance. Its size 000 classification and gG operation class make it suitable for a wide range of industrial applications. As a mechanical product, it does not carry current itself but serves as a critical safety device in electrical systems.
Key Benefits
- Robust porcelain construction for durability and insulation.
- Halogen-free materials for environmentally responsible use.
- Suitable for 500 V applications with a 32 A rating.
- Standard size 000 for compatibility with NH fuse holders.
- Class gG operation for general purpose protection against overloads and short circuits.
- Lightweight design at 13.0 kg per 100 units for easy handling and installation.
Technical Specifications
- Item number: 03535
- Description: NH fuse 32 A
- Weight: 13.0 kg/100
- Material: Porcelain
- Halogen free: Yes
Frequently Asked Questions
Is the NH fuse 32 A suitable for high voltage applications?
This fuse is designed for use up to 500 V, making it suitable for many industrial electrical systems.
Does this fuse carry current directly?
No, as a mechanical fuse, it does not carry current itself but acts as a protective device within the circuit.
What does the gG classification mean?
The gG classification indicates that the fuse provides full-range protection against overloads and short circuits for general applications.
Is the fuse environmentally friendly?
Yes, it is made from halogen-free materials, supporting safer disposal and reduced environmental impact.
Where can I find technical documentation and CAD data?
Technical information, data packets, characteristics, and CAD files are available through the provided download links.
| Manufacturer Part Number | 03535 |
|---|---|
| Barcode | 4021267035358 |
| Width | 40mm |
| Country of Manufacture | Hungary |
| HS Code | 85361050 |
| Alternative Product SKU | 03535000A |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Rated current | 32A |
| Utilization category according to IEC 60269 | gL/gG (cable protection/equipment protection) |
| Rated switching capacity | 120kA |
| Rated voltage AC | 500V |
| Rated voltage DC | 250VDC |
| Power loss at rated current | 3.1W |
| Fuse construction type according to IEC 60269 | NH000 |
| Type of fuse status indicator | Combination fuse status indicator |
