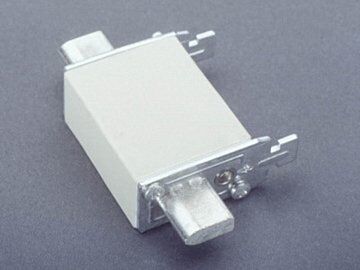

03534 Wohner NH fuse 160 A
MPN: 03534
Alt. SKU: 03534000A
Special Price
£8.86
£7.38
Regular Price
£11.06
Why Choose the NH Fuse 160 A (03534)?
The NH fuse 160 A (03534) is a reliable mechanical component designed to provide essential protection in electrical systems. Constructed from durable porcelain and halogen-free materials, it ensures safety and environmental compliance. Its size 00 classification and gG operation class make it suitable for a wide range of industrial applications. As a mechanical product, it does not carry current itself but acts as a crucial safety device in fuse links.
Key Benefits
- Robust porcelain construction for enhanced durability and insulation.
- Halogen-free design supports environmentally friendly installations.
- Compatible with NH 00 fuse holders and links for easy integration.
- Reliable gG operation class suitable for general purpose protection.
- Mechanical product that ensures safety without carrying current.
Technical Specifications
- Item number: 03534
- Description: NH fuse 160 A
- Weight: 20.0 kg/100
- Material: Porcelain
- Halogen free: Yes
Frequently Asked Questions
Does the NH fuse 160 A carry current?
No, as a mechanical fuse component, it does not carry current itself but is used within fuse links to provide protection.
What does the gG operation class mean?
The gG operation class indicates that the fuse is suitable for general purpose protection of cables and equipment against overload and short circuit currents.
Is the NH fuse 160 A environmentally friendly?
Yes, it is made from halogen-free materials, supporting environmentally responsible installations.
Where can I find technical documentation for this product?
Technical documents including general information, characteristics, and conformity declarations are available for download from the product page.
| Manufacturer Part Number | 03534 |
|---|---|
| Barcode | 4021267035341 |
| Width | 40mm |
| Country of Manufacture | Hungary |
| HS Code | 85361090 |
| Alternative Product SKU | 03534000A |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Rated current | 160A |
| Utilization category according to IEC 60269 | gL/gG (cable protection/equipment protection) |
| Rated switching capacity | 120kA |
| Rated voltage AC | 500V |
| Rated voltage DC | 250VDC |
| Power loss at rated current | 11.3W |
| Fuse construction type according to IEC 60269 | NH00 |
| Type of fuse status indicator | Combination fuse status indicator |
