03351 Wohner NH fuse-base 160 A
MPN: 03351
Alt. SKU: 03351000
Special Price
£32.72
£27.27
Regular Price
£40.90
NH fuse-base 160 A (03351)
Part No.: 03351 000

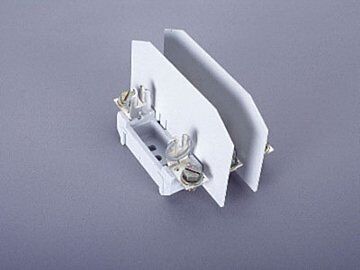

QUADRON Panel NH fuse-base 160 A with both sides screw and 2 barriers, size 00 / 3P, designed for mounting plate installation.
Why Choose the NH fuse-base 160 A?
This mechanical NH fuse-base is engineered for reliable and safe fuse mounting in electrical panels. It is halogen free, ensuring environmentally friendly use, and carries approvals from DNV GL, confirming its quality and compliance with industry standards. Its robust construction with dual barriers and screw connections on both sides guarantees secure and stable installation.
Key Benefits
- Mechanical design – does not carry current, ensuring safe fuse mounting.
- Halogen free materials for reduced environmental impact.
- Dual barrier protection for enhanced safety.
- Suitable for mounting plates, providing easy integration into panels.
- Certified by DNV GL and identified with type number NH-00 for assured quality.
- Compact dimensions (97 x 145 x 88 mm) for space-efficient panel design.
Technical Specifications
- Item number: 03351
- Description: NH fuse-base 160 A
- Dimensions (W x H x D): 97 x 145 x 88 mm
- Weight: 45.7 kg/100
- Halogen free: Yes
- Approval: DNV GL
- Approval: type number: NH-00
Frequently Asked Questions
Is the NH fuse-base suitable for direct current applications?
This product is mechanical and does not carry current itself; it is designed to securely hold fuses in place within panel installations.
What does halogen free mean for this fuse-base?
Halogen free indicates that the materials used do not contain halogen elements, reducing toxic gas emissions in the event of fire.
Can this fuse-base be mounted on any panel?
It is designed specifically for mounting plates, ensuring compatibility with standard panel mounting systems.
Where can I find detailed technical drawings and CAD models?
Technical documents and CAD files are available for download from the product page and linked resources.
| Manufacturer Part Number | 03351 |
|---|---|
| Barcode | 4021267033514 |
| Height | 145mm |
| Width | 97mm |
| Depth | 88mm |
| Mount Type | Screw-on |
| Country of Manufacture | Germany |
| HS Code | 85361090 |
| Alternative Product SKU | 03351000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
| Halogen free | Yes |
| Rated current | 160A |
