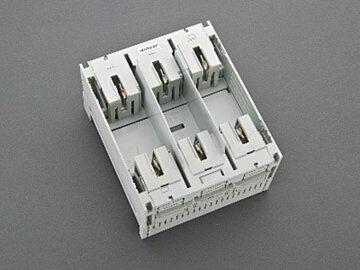

03301 Wohner NH fuse base 250 A
MPN: 03301
Alt. SKU: 03301000
Special Price
£269.76
£224.80
Regular Price
£337.20
Why Choose NH Fuse Base 250 A (03301)?
The NH fuse base 250 A (Part No.: 03301 000) from the QUADRON 60Classic system is designed for reliable and safe electrical installations. Featuring CrossLink® adapter technology, it allows fast and secure conversion of connections for top or bottom mounting. Its robust construction supports busbars of various sizes and sections, ensuring versatile application in industrial environments. This mechanical product does not carry current itself but provides a stable and safe base for NH fuses.
Key Benefits
- Fast and safe conversion of connection orientation (top or bottom) using CrossLink® adapter technology
- Simple and secure clicking mechanism for easy installation and reliable contact
- Shock protection split into two parts for enhanced safety during handling
- Supports mounting of flat busbars above each other for flexible busbar arrangements
- Compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars
- Certified with CCC approval and type number QCC-NH1 ensuring compliance with quality standards
Technical Specifications
- Item number: 03301
- Description: NH fuse base 250 A
- Dimensions (W x H x D): 184 x 210 x 132 mm
- Weight: 198.5 kg/100
- Halogen free: No
- Approval: CCC
- Approval: type number: QCC-NH1
Frequently Asked Questions
Is the NH fuse base suitable for different busbar sizes?
Yes, it supports busbars sized 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars, providing flexible installation options.
Can the connection orientation be changed after installation?
Yes, the CrossLink® adapter technology allows fast and safe conversion of the connection for top or bottom mounting.
Does this fuse base carry current?
No, as a mechanical product, the NH fuse base does not carry current itself but provides a secure mounting and connection point for NH fuses.
Is the product halogen free?
No, this product is not halogen free.
What certifications does this product have?
It is certified with CCC approval and carries the type number QCC-NH1.
| Manufacturer Part Number | 03301 |
|---|---|
| Barcode | 4021267033019 |
| Height | 210mm |
| Width | 184mm |
| Depth | 132mm |
| Country of Manufacture | Germany |
| HS Code | 85361090 |
| Alternative Product SKU | 03301000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Rated current | 250A |
