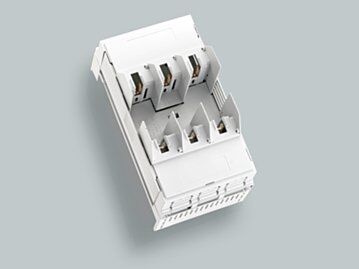

03299 Wohner NH fuse-base 160 A
MPN: 03299
Alt. SKU: 03299000
Special Price
£55.39
£46.16
Regular Price
£69.23
Why Choose the NH Fuse-Base 160 A (03299)?
The NH fuse-base 160 A (Part No.: 03299 000) from the QUADRON 60Classic system is designed for reliable and safe mechanical connection of NH fuses. Its robust construction and versatile connection options make it an ideal choice for various industrial applications. Featuring CrossLink® adapter technology, it allows fast and safe conversion of the connection for top or bottom mounting, ensuring flexibility and ease of installation. The product supports busbars of multiple sizes and sections, providing adaptability to different electrical setups.
Key Benefits
- Fast and safe conversion of connection position (top or bottom) using CrossLink® adapter technology.
- Simple and secure clicking into place ensures reliable contact without the need for complex tools.
- Shock protection is split into two parts for enhanced safety during installation and operation.
- Supports mounting of busbar supports for flat busbars above each other, optimising space and organisation.
- Mechanical product that does not carry current, ensuring safe handling and installation.
Technical Specifications
- Item number: 03299
- Description: NH fuse-base 160 A
- Dimensions (W x H x D): 106 x 200 x 90 mm
- Weight: 87.0 kg/100
- Halogen free: No
- Approval: type number: QCC-NH00
Frequently Asked Questions
Is the NH fuse-base suitable for different busbar sizes?
Yes, it supports busbars sized 12, 15, 20, 25, and 30 mm with thicknesses of 5 and 10 mm, as well as section busbars.
Can the connection position be changed after installation?
Yes, the CrossLink® adapter technology allows fast and safe conversion of the connection for either top or bottom mounting.
Does this product carry electrical current?
No, as a mechanical fuse-base, it does not carry current but provides a secure mounting and connection point for NH fuses.
Are there mounting instructions available?
Yes, detailed mounting instructions can be downloaded from the provided technical documentation links.
| Manufacturer Part Number | 03299 |
|---|---|
| Barcode | 4021267032999 |
| Height | 200mm |
| Width | 106mm |
| Depth | 90mm |
| Country of Manufacture | Germany |
| HS Code | 85361090 |
| Alternative Product SKU | 03299000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Rated current | 160A |
